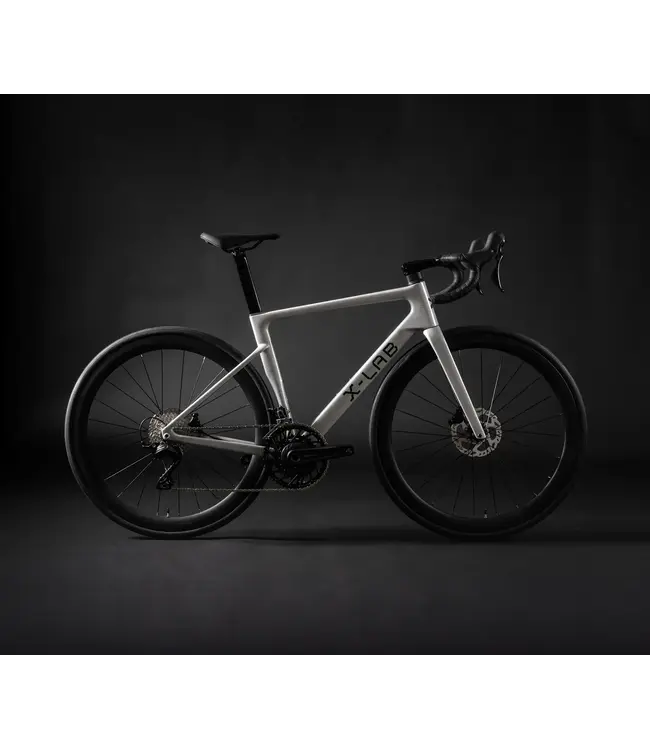

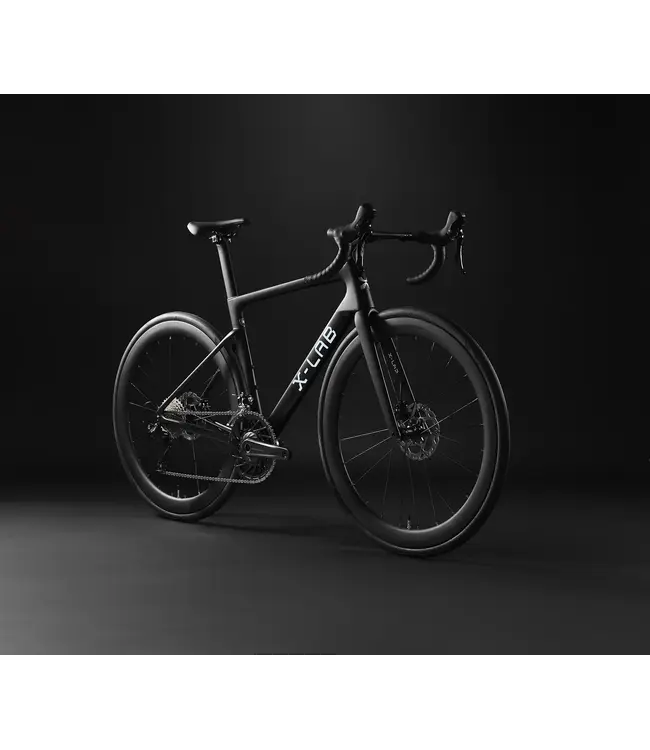

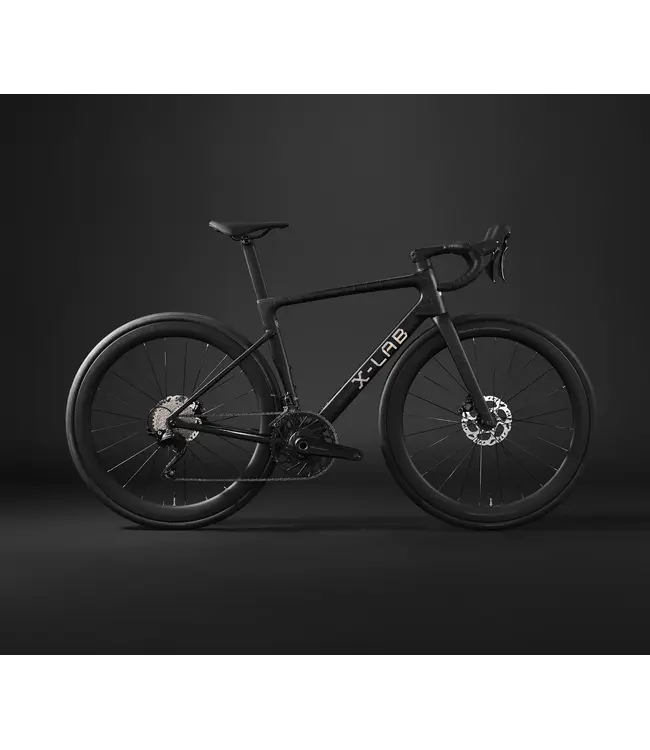

XDS X-Lab RS7 105

Contact us now to pre order, current estimated arrival is early October for most sizes in black and white. Checked 31.07.26

Race-inspired speed and performance, built for the everyday ride.

X-LAB RS7

The RS7 blends aerodynamic efficiency with everyday rideability.

Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.

Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again

Technical Specifications

FRAME

XDS Carbon Frame, Toray T800

FORK

XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle

HANDLEBAR / STEM

Branta Carbon Integrated

SEATPOST

XDS Carbon Seatpost, Aero Profile

REAR DERAILLEUR

Shimano 105 RD-R7100

FRONT DERAILLEUR

Shimano 105 FD-R7100

SHIFTERS

Shimano 105 ST-R7120

BRAKES

Shimano 105 BR-R7170

CASSETTE

CS-R9012, 12-Speed, 11-34T

CRANKSET

Branta Alloy Power Meter Crankset, 52-36T,

24mm Steel Spindle, Apple Find My Anti-Theft Technology

BOTTOM BRACKET

BSA 24mm

ROTORS

Shimano SM-RT70, F:160mm R:160mm

CHAIN

SUMC SX12

WHEELSET

Branta C50 Base Carbon Wheelset, Stainless Steel Spokes

TIRES

Branta R332, 700x32C, 60TPI

Max Tire Clearance: 32C

SADDLE

Branta R302, Steel Rails

WEIGHT

8.49 kg / 18.67 lbs (Size L)

SIZE OPTIONS

XS / S / M / L / XL / XXL

Geometry & Dimensions

Basic geometry

title	XS	S	M	L	XL	XXL
A — Seat Tube Length	420mm	440mm	470mm	490mm	510mm	530mm
B — Top Tube Length	500mm	515mm	531mm	550mm	570mm	590mm
C — Head Tube Length	130mm	135mm	145mm	160mm	175mm	200mm
D — Seat Tube Angle	75°	75°	75°	74°	74°	74°
E — Head Tube Angle	70°	72°	73°	73°	73°	74°
F — Chainstay	410mm	410mm	410mm	410mm	410mm	410mm
G — Wheelbase	973mm	976mm	982mm	993mm	1006mm	1016mm
H — Bottom Bracket Drop	72mm	72mm	70mm	70mm	68mm	68mm
I — Stack	526mm	535mm	546mm	561mm	574mm	602mm
J — Reach	360mm	370mm	380mm	390mm	400mm	412mm
K — Front Center	574mm	577mm	581mm	593mm	606mm	616mm
O — Stand Over	737mm	752mm	772mm	789mm	807mm	830mm

Component geometry

title	XS	S	M	L	XL	XXL
Fork Rake/Offset	55mm	55mm	45mm	45mm	45mm	45mm
Trail	65mm	58mm	62mm	60mm	58mm	52mm
Handlebar	360mm	360mm	380mm	380mm	400mm	400mm
Stem	90mm	100mm	110mm	110mm	120mm	120mm
Crankset	165mm	165mm	170mm	170mm	172.5mm	172.5mm
Seat Post	300mm	300mm	300mm	350mm	400mm	400mm
