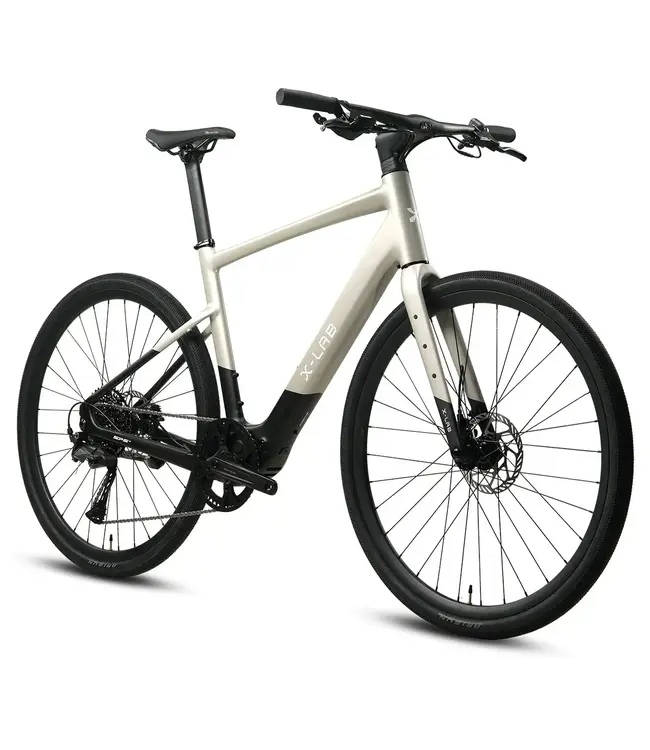

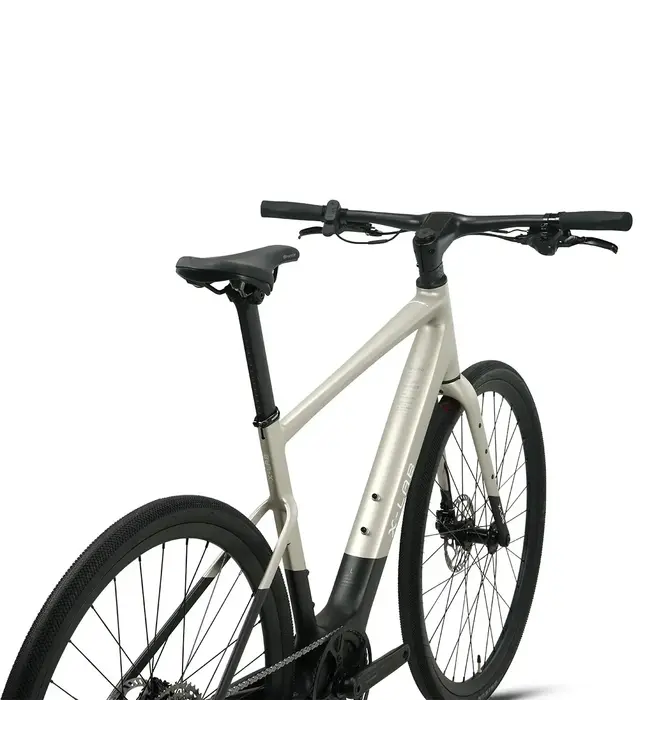

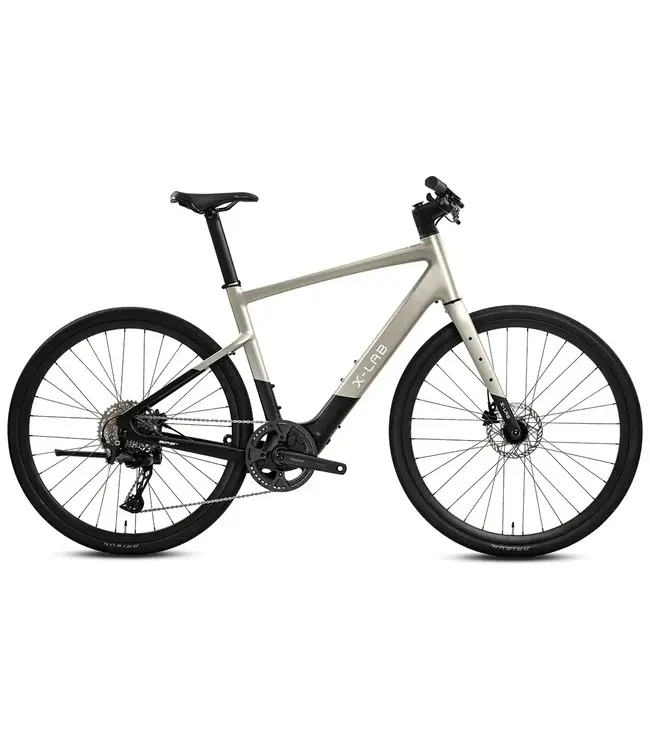

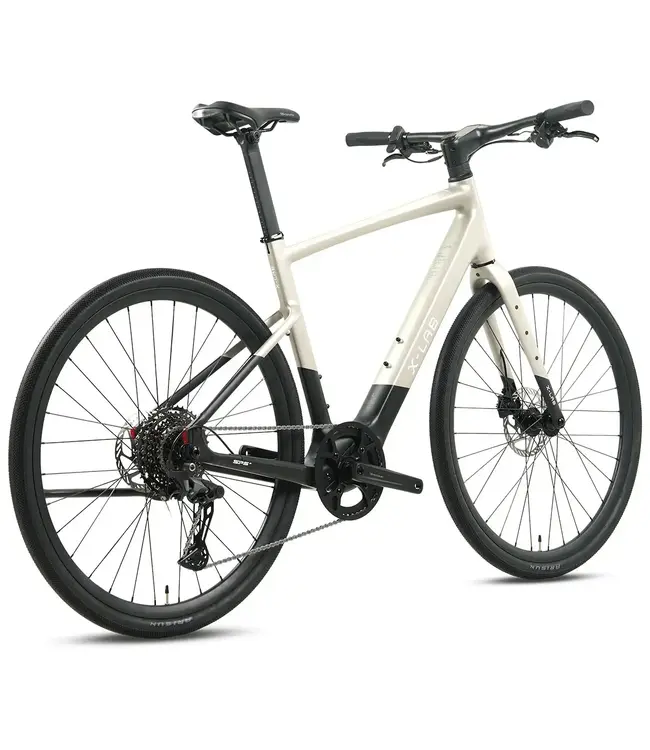

X-LAB SP5+ Stormcloud Grey

Not yet rated | Create your own review

$2,999.99 Incl. tax

Availability:: In stock

Delivery time:: STORE PICK UP ONLY - FOR IN STORE PURCHASE ONLY

Size:

Open Tuesday to Saturday

Professional Workshop

MTB & Road Bikes for Hire

Gift Vouchers Available

Information
Reviews

X-LAB SP5+

The SP5+ is built to make electric cycling simple, smooth, and accessible.

Its lightweight frame and intuitive electric assist provide effortless acceleration and reliable range, helping riders cover longer distances with ease.

Balanced geometry and durable construction ensure stability and comfort whether you're commuting, exploring your neighborhood, or enjoying weekend rides.

The SP5+ proves that electric mobility can be both practical and fun, with an element of fitness built in.

Everything You Need Right Up Front

An integrated cockpit and clear dashboard makes riding intuitive with assist modes, range, and ride essentials all in one clean interface designed for effortless daily use.

Lightweight and Versatile Electric Mobility

A sleeker alloy frame and a complete build under 37 lbs makes the SP5+ feel quick, agile, and more like a fitness bike, just with an extra reassuring push whenever you want it.

Mid-Drive Integration the Branta Way

With an in-house mid-drive system supported by Branta platform integration, the SP5+ is built to keep the bike clean, capable, and easy to maintain ride after ride.

Fitness-First Electric, Smarter by Design

With Find My and app-powered controls, SP5+ brings modern e-bike intelligence to a lightweight, sporty platform – unlocking personalization, firmware updates, and ride tracking without adding difficulties.

The Branta Advantage is Exclusive to X-LAB

Highlights SP5+

Key Features

Class 2 throttle + Apple Find My anti-theft technology

Shimano CUES 9-speed drivetrain

Integrated rear taillight + brake light

Sport setup: 700c gravel all-terrain tires and fitness riding position

Technical Specifications

FRAME

XDS X6 Alloy Frame, UDH Compatible

FORK

XDS Carbon Fork, 100x12mm Thru-axle

HANDLEBAR / STEM

Branta Alloy Integrated, w/ Display & Front Light, 680mm

Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep

SEATPOST

XDS Alloy Seatpost, Aero Shape, 350mm Length

REAR DERAILLEUR

Shimano Cues RD-U4000, 9-Speed

SHIFTER

Shimano Cues 9-Speed

BRAKES

Branta EC215D Hydraulic E-Bike Brake, w/ Cutoff Switch,

3 Finger Lever, 2 Piston Caliper

CASSETTE

Shimano CS-LG300 11-46T, 9-Speed

CRANKSET

Branta Alloy Crankset, 46T, Narrow-wide Teeth

MOTOR

XDS Mid-drive X800 Motor, 250 Watt Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque, Dual-sided Torque Sensor

BATTERY

XDS Rechargeable Li-ion Battery, 339Wh, LG Battery Cells, 3A Charger (0-100% 3hr 15min)

LIGHTS

Integrated F+R Lights (+ Brake Lights)

SPEED

Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)

RANGE

Ride up to 43 miles on a Single Charge

TESTING AND COMPLIANCE

UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6

LOAD CAPACITY

Max Load 265 lbs (120 kg)

CONNECTIVITY

Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates

ROTORS

Branta Z8, F:160mm R:160mm

CHAIN

KMC E-GLIDE-S

WHEELSET

Branta Alloy E-Bike Wheelset

TIRES

Branta R240, 700x40C, 30TPI

Max Tire Clearance: 45C w/ Full-Wrapped Fender

SADDLE

Branta SRX+

PHONE HOLDER

Quad Lock Mount

WEIGHT

16.79 kg / 37.01 lbs (Size L)

SIZE OPTIONS

S / M / L

*Continuous Product Improvement

Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.

product geometry anchor

Geometry & Dimensions

Basic geometry

title	S	M	L
A — Seat Tube Length	406mm	457mm	508mm
B — Top Tube Length	541mm	580mm	609mm
C — Head Tube Length	171mm	171mm	197mm
D — Seat Tube Angle	75°	74°	74°
E — Head Tube Angle	69°	71°	72°
F — Chainstay	445mm	445mm	445mm
G — Wheelbase	1080mm	1081mm	1100mm
H — Bottom Bracket Drop	71mm	65mm	65mm
I — Stack	565mm	594mm	621mm
J — Reach	385mm	410mm	425mm
K — Front Center	644mm	645mm	663mm
O — Stand-over	774mm	787mm	823mm

Component geometry

title	S	M	L
Fork Rake/Offset	46mm	46mm	46mm
Trail	90mm	74mm	70mm
Stem	90mm	90mm	90mm
