Vivente Gibb Trekking Bar Medium Rohloff-Gates 50:19 700 x 47mm M+T

Information
Reviews

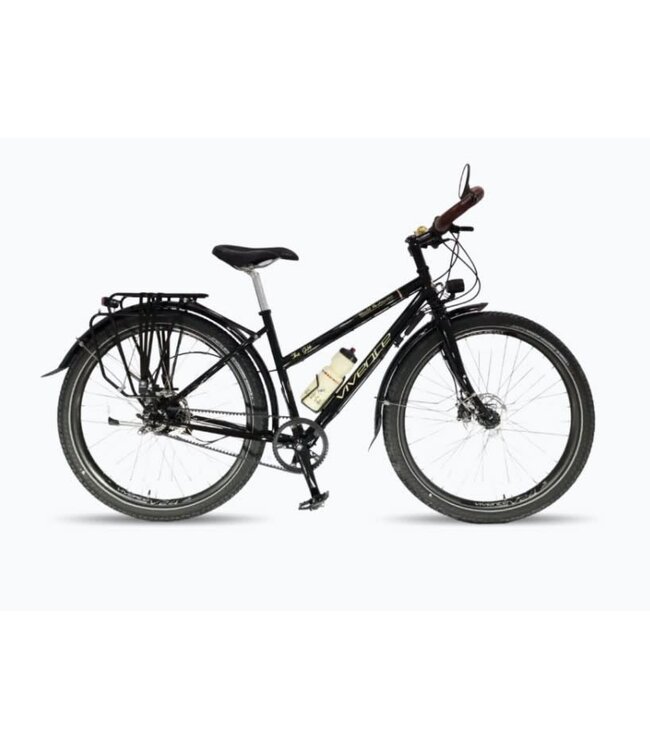

Born in the Kimberly in Western Australia, a state-of-the-art Rohloff Gates Carbon Drive travel bike designed to handle rough terrain with heavy luggage right around the world.

Available in bike stores fromAUD $7,100.00^*^*Including all components. Includes Australian GST.

Trekking bars fitted with foam wrapped with leather tape are standard
Rohloff internal gear system with belt drive
Choose between 40mm, 45mm, 50mm, 57mm and 70mm wide tyres
Choose front and rear combinations for traditional through to extra low gearing.
There is a rider-weight restriction for extra-low

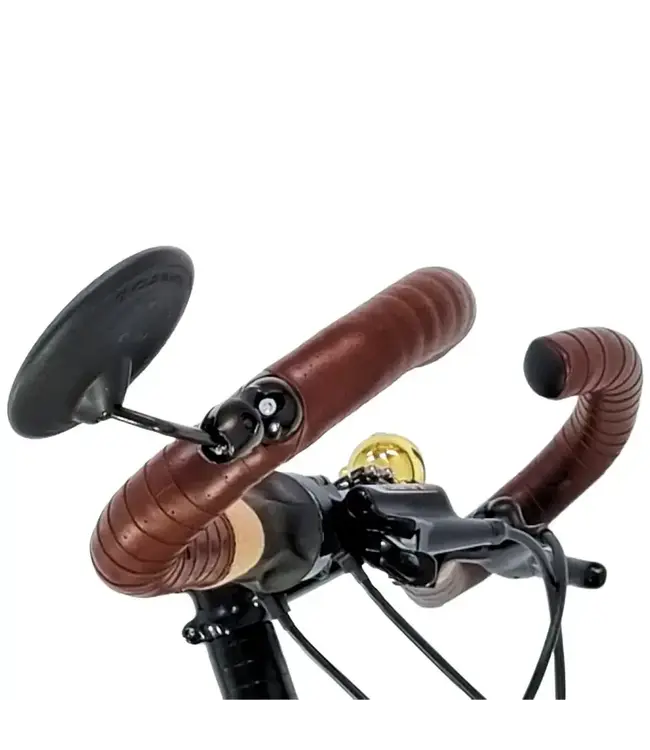

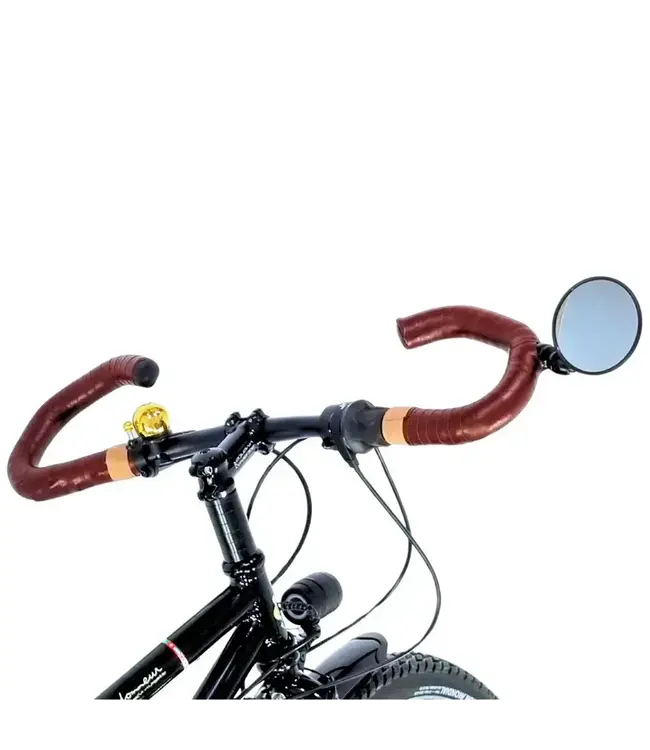

Trekking Bars

Trekking bars offer lots of alternate hand placements, so you can always find a comfortable position.

Rohloff internal gear system with carbon belt drive

Rohloff 14 speed gear system with Gates carbon belt drive. Rohloff hubs are safe from mud and other foreign bodies while maintaining incredible gear efficiency.

Steel Frame

The famous World Randonneur chromoly steel frame keeps style, class and strength in mind. Our Chromoly touring bike steel frames are built to last through heavy conditions.

More Features

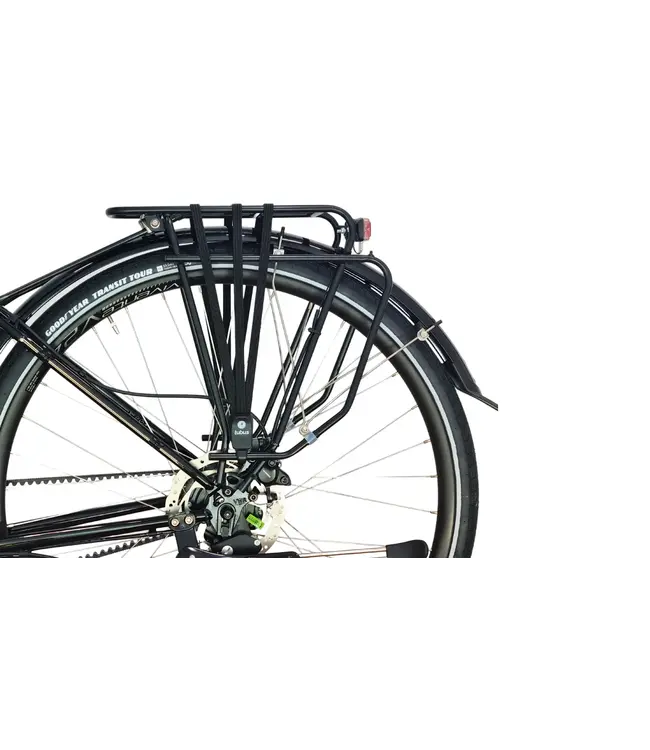

Rear carrier with strap

Able to carry up to 40kg this tubus rear rack will mean longer tours without breakages. We have even supplied a strap which fits around the rack perfectly.

Tools & Spares

All Vivente Rohloff bikes come with all the tools needed for assembly, packing and maintenance. Plus some spares.

Specifications

Frame Set

All Vivente bikes are built with solid frames of chromoly steel for maximum longevity.

Frame: Double butted Cr-Mo touring frame, EBB shell
Sizes S, M, L, XL, XXL (S, M and L also available in dropped top-tube versions)

Eccentric Bottom Bracket (EBB): VWR – internal expansion type

Front fork: 1-1/8″ full Cr-Mo, threadless, mudguard, lowrider and electric cable mounts, through axle, steering stabiliser hook

Headset & Spacers

Tange RDC-82, 1-1/8″ Duralumnium – black, stack 26.2, fully sealed cartridge, 81g (with 10mm × 9mm and 5mm × 1mm spacers)

Seatpost & Clamp

Kalloy SP-342 micro adjust 27.2 × 300mm silver, Clamp Kalloy, black – ID 30mm

Mounting hardware

All stainless 5mm and 6mm metric with stainless flat and spring washers. Rear rack mounted with high-tensile steel zinc coated flange-headed screws.

Brakes

Brakes are one of the most important parts of cycling and we have not compromised on safety for any Vivente Bike.

Calipers

Tektro HD-M520 Gemini (hydraulic disc)

Rotors

Tektro 6 bolt, 160mm front and Rohloff rear

Levers

Tektro 2 finger hydraulic – reach adjustable

Transmission

All Vivente Bikes come with tried and trusted transmissions systems to keep you ride at the most efficient, long-lasting and durable.

Crankset

Andel – BCD 130mm, 5 arm, 165/170/175mm, with FSA QR-1 self-extracting crank bolts

Bottom Bracket Set

Tange LN-3922 English square taper JIS sealed cartridge 68mm × 118mm

Snubber

Rohloff Snubber

Chain or belt

Gates carbon belt 11M-120T-12CT (blue) / 11M-118T-12CT (blue)

Front sprocket

Gates 50T OR Gates 46T

Rear sprocket

Gates 19T OR Gates 22T

Rear Hub

Rohloff speedhub 500/14, 36H, CC DB, black, external transfer box 210 degree, OEM axle plate, with spoke ring, quick release

Shift levers

Rohloff right hand 14 speed twist shifter

Traditional gearing

50:19T with 120T belt for a gear range from 20.0 to 105.2 inches

Lower gearing

46:19T with 118T belt for a gear range from 18.4 to 96.8 inches

Very low gearing

50:22T with 120T belt for a gear range from 17.3 to 90.9 inches

Extra low gearing

46:22T with 118t belt for a gear range from 15.9 to 83.6 inches (for riders under 100kg)
Wheels Whether travelling down dirt roads or city roads our wheels are designed for maximum durability and safety. Rims Vivente V24, ID 24mm, 36H, black, for presta valve, 700c (ERD598, 625g) OR Rim tape Tubeless tape, double layer, 28mm blue Tyres +$120 Schwalbe Marathon Plus Tour 47-622 (28 × 1.75) 45-70 psi, with reflective strip, 1089g each Tubes 700 × 35-43mm, 48mm presta valve OR 650b × 50-60mm, 48mm presta valve Front hub Dynamo hub, KT, (6-bolt), 6V 3W, 36 hole, Through Axle (12mm QR) OR 12mm 6mm hex head Front spokes Sapim Leader 2.0mm stainless, black on 700C or silver on 650B, cross 3 Rear spokes Sapim Race 2.0-1.8-2.0mm stainless, cross 2 Contact We have tested countless contact variations for all our bikes and believe we have one of the most comfortable bikes to ride in the world. Handlebar Humpert Horn bar – (25.4mm bore) 580mm, adjustable, fitted with foam wrapped with Brooks brown leather tape Stem VWR – bore 25.4mm, steerer 28.6mm, 3D forged, 7°, 80(S)/100(M, L)/120(XL, XXL) – black Pedals VP-R62 – SPD clipless one side, platform the other Saddle Velo Swan OM – 428g gel anatomic with cut-out 272mm × 170mm (black) Lights Many countries require lights on bicycles as a matter of law. Vivente Bikes come with both front and rear lights powered by a dynamo hub. Front light Busch & Muller IQ-X – daytime running, automatic sensor, standlight, double pivot bracket, 100 lux Rear light Busch & Muller, top-light 2c plus, with stand-light Racks All Vivente touring bikes come with at least rear racks pre-installed. Rear carrier Tubus Logo Evo Cr-Mo with Tubus luggage strap Other Vivente Bikes are designed to be useful right out of the box and so come with additional accessories to make your ride safer and more enjoyable. Fenders (Mudguards) VWR – 46mm wide, with stainless steel hardware OR VWR – 60mm wide, with stainless steel hardware Kickstand Atranvelo, Stylo DV long wire or leg Bell & Horn Brass bell – 22.2mm / 30mm Cages & Bottles 6mm black alloy cage & VWR custom LD PE 700cc bidon (extra bottle and cage are in owner’s box) Steering Stabilizer Hebie with elastomer (in owner’s box) Mirror Busch & Muller, 80mm (with 60mm spare is in owner’s box) What's in the box Included with this model is a full set of bike tools and some spares such as spokes, Rohloff gear cable and more
