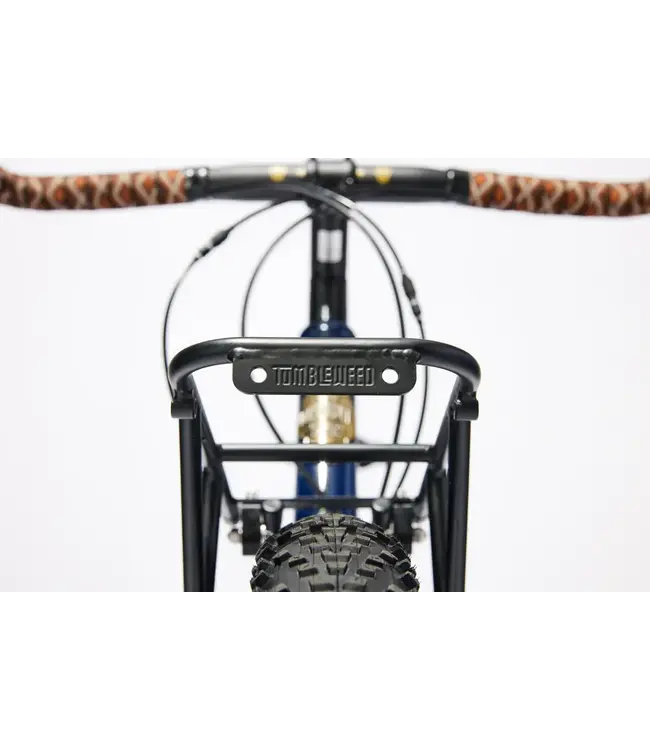

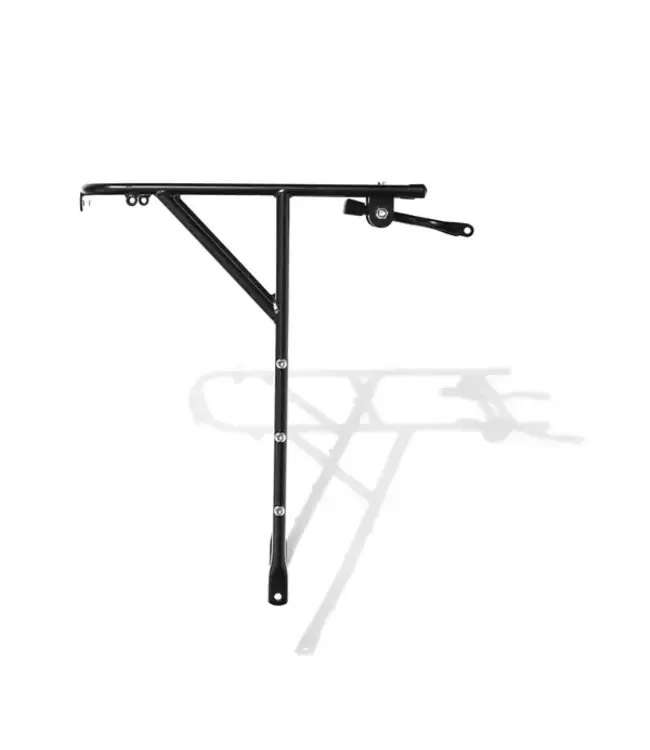

Tumbleweed Chromoly T Rack

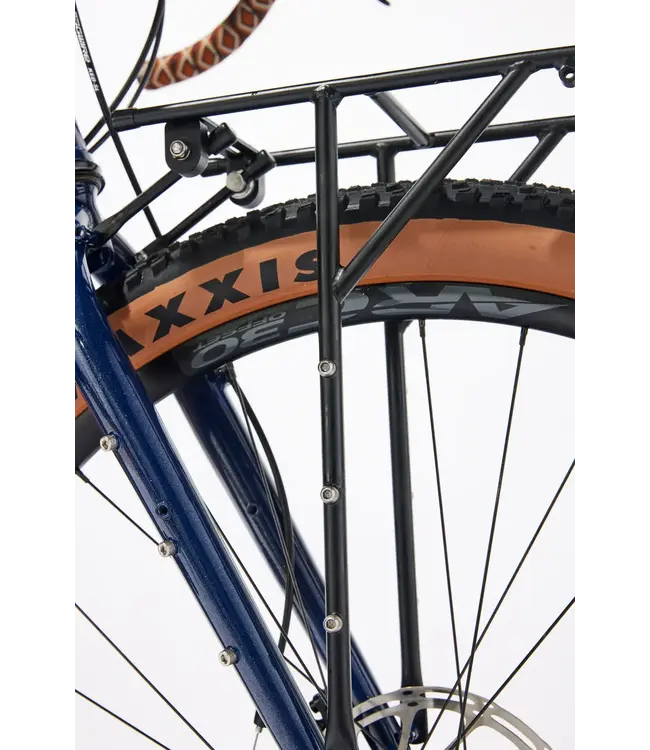

The T Rack is a lightweight, minimalist bag support rack with a generously sized top platform and triple bottle bosses on the sides of the rack legs to carry small dry bags or water bottles via cargo cages or bottle holders.

To determine which rack height to order, measure from your lower rack mount to the top of your tire and add 25-50mm.

This rack has been extremely popular with bicycle travelers for several years, and we've updated several aspects of the design, including:

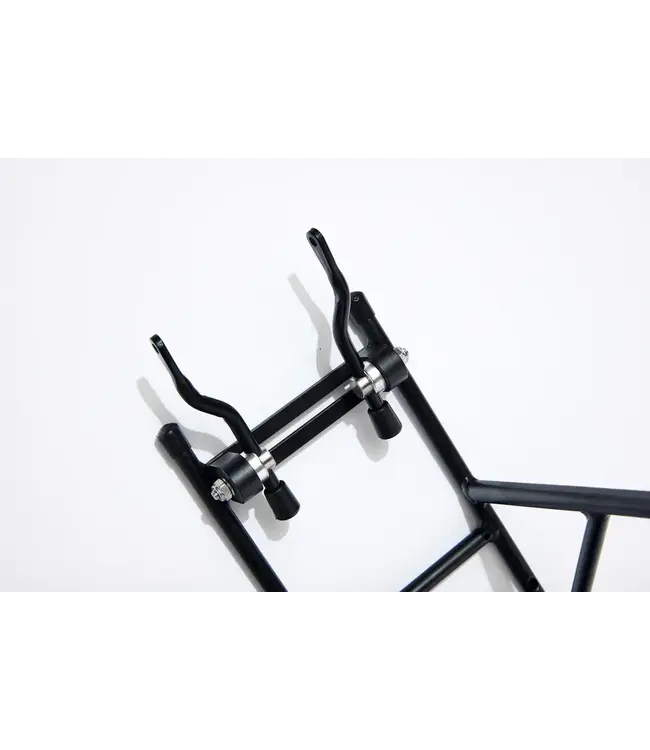

• Completely redesigned mounting hardware to reduce the likelihood of loosening over time. (You will need to still check hardware tightness regularly, as with any rack.)

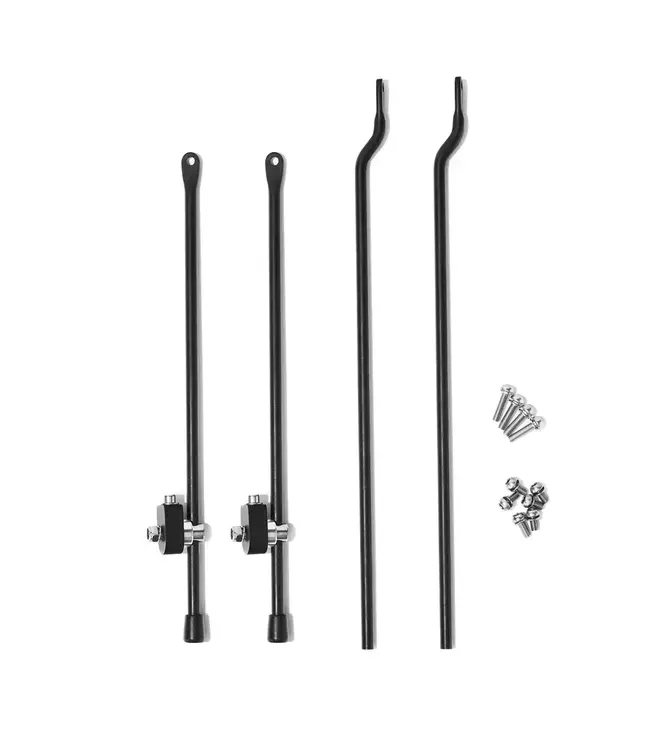

• Two sets of extra-long 350mm mounting struts, one straight and one offset, to more easily fit a wider range of bikes.
• Internal dynamo wiring port on the platform for a headlight or taillight.
• Increased 12mm tube diameter of vertical leg with thinner walls to increase stiffness and reduce weight (load rating over the center of the platform remains 30 lbs).

Specs

• Platform heights: 355mm and 380mm to accommodate a range of frames and forks
• Weight: 470 grams without hardware or 649 grams with all mounting hardware, bolts, and uncut 350mm struts
• Total load limit: 30 lbs, including 5 lbs for each set of triple bosses
• Installation and warranty

Requirements

• The load on the rack platform must be centered over the rack, not overhanging/cantilevered off the end of the platform.
• You'll need threaded load-bearing mounting points at the dropouts and seatstays or fork crown to properly mount the T rack.
• If you don't have upper rack bosses, seat clamps with integrated rack mounts are available.
• If your steel fork doesn't have upper bosses, we sell a rack adaptor that attaches to the center hole of your fork crown (depending on the style of your fork).
