Thule ReVert 4-bike Vertical Hitch Bike Rack

Information
Reviews

Gear up together, hit the trail faster

Capacity for more

The Thule ReVert bike rack transforms your vehicle into a high-capacity bike transporter. By loading bikes vertically, you maximize the number of bikes per journey while making the most efficient use of space around your vehicle. Every trip can easily become a group adventure.

Dual TiltAssist damper

The dual TiltAssist damper makes handling practically effortless. Simply push down the tilt release lever and tilt the rack down, roll up the bikes, give the tilt release lever a second pushdown, and raise the rack back up. The damper makes it a breeze as it gives you weight assistance in both directions with bikes loaded.

Ease of use

Engineered for convenience, the rack's tilt-down feature grants easy trunk access. Loading is quick and straightforward – simply roll your bikes in and out of the wheel baskets with minimal lifting efforts. Save all your energy for the upcoming ride!

Durability

Built with solid steel construction, it withstands the rigors of the road and is backed by rigorous testing standards at the Thule Test Center. Its elastic wheel straps and tool-free AutoAttach system mean your bikes are secured fast and you’re off to the trails in no time.

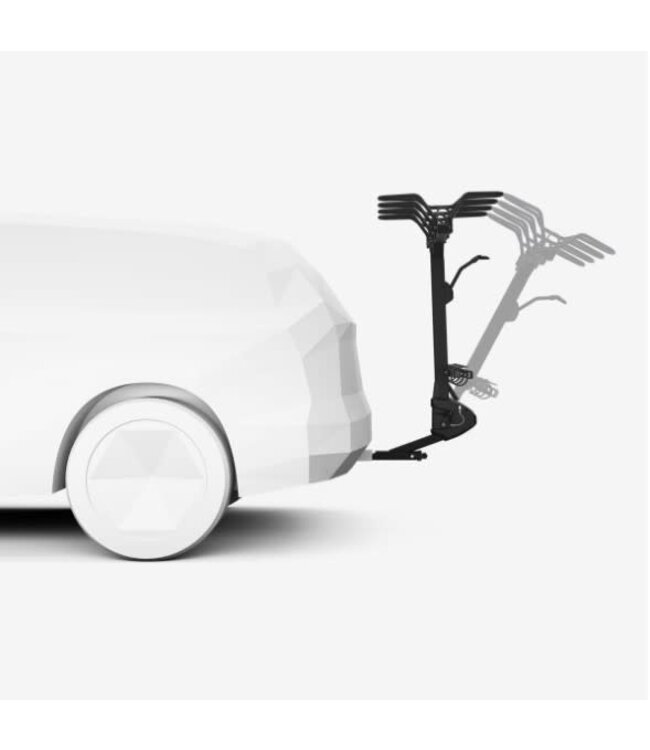

Dual direction tilt assist damper with memory function

The hydraulic damper provides weight assistance, making it easier to both lower and raise the rack with bikes fully loaded. Accessible tilt release handle for tilting the rack. The rack locks itself when tilted down in the load position. By gently pushing the handle down, the memory function activates which allows the user to let go of the handle and use both their hands to push the rack back up again

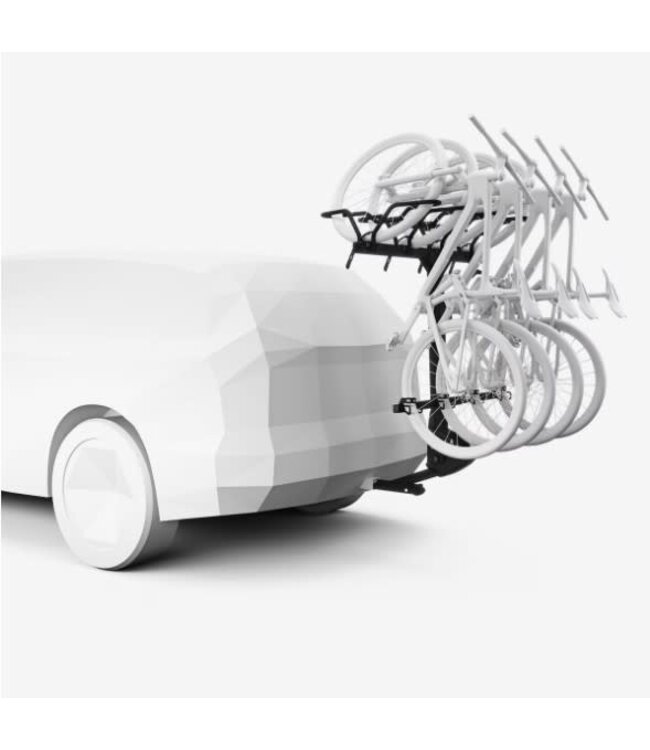

Easy trunk access

With bikes mounted, the trunk is accessible with a push down handle tilt

Compatible with the full fleet of bikes

24-29" wheels (24" accessory insert sold separately) with tires wide as 5" (3-5" accessory wheel basket sold separately)

High load capacity

The high load capacity of 55lbs (25kg) per bike and a max carrier load capacity of 220lbs (100kg) makes it possible to transport the heaviest bikes and lighter E-bikes

Convenient roll in and roll out bike loading

Quick and easy bike loading and unloading of bikes with limited to no lifting required. Wheel baskets designed to easily roll in and roll out the bikes while the rack is tilted down

No frame or fork contact

Rubber contact only to prevent any frame or fork contact

Generous spacing between bikes

Generous 12" (305mm) distance between bikes reduces risk of bike-to-bike contact

Made for long wheelbases

Extra-long wheel holders enable easy transport of bikes with long wheelbases, up to 53" (1350mm)

Easy fastening of tires

Resilient and durable wheel straps for quick and secure fastening of tires up to 3"

Locks for safety

Integrated hitch bike lock to secure your rack to your car

Great accessories

Wide range of innovative accessories available (accessories sold separately)

Quick mounting

Hit the trails faster with the Tool-free AutoAttach system with easy grip lever that allows for simple and secure mounting and removal of the rack

Off-road use

This product is intended for use on public and private roads, including off-roads such as gravel roads, forest service roads and access roads. Refer to definition in the safety instruction

RV Travel

This product is approved for motorized RV travel at reduced load capacity. It is essential to follow the 40% load reduction guidelines provided in the fitting instruction for safe and optimal performance

Max number of bikes

Load capacity

100 kg

Max bike weight

25 kg

Dimensions (LxWxH)

76 x 122 x 147 cm

Weight

32.8 kg

Distance between bikes

30.5 cm

Max tire width

3" (up to 5" with Thule Revert fatbike wheel basket)

Max wheel size (diameter)

29" (24" with Thule ReVert 24" wheel adapter)

Max wheelbase

1350 mm

Tilt function (with bikes)

Fits 1.25" receivers

Fits 2" receivers

One Key System compatible

Bike lock included

Receiver lock included

Off-road use

Yes, refer to definition in the safety instruction

RV Travel

Yes, refer to definition in the fitting instruction

Country of origin

USA

Color

Black

Model number

9024500
