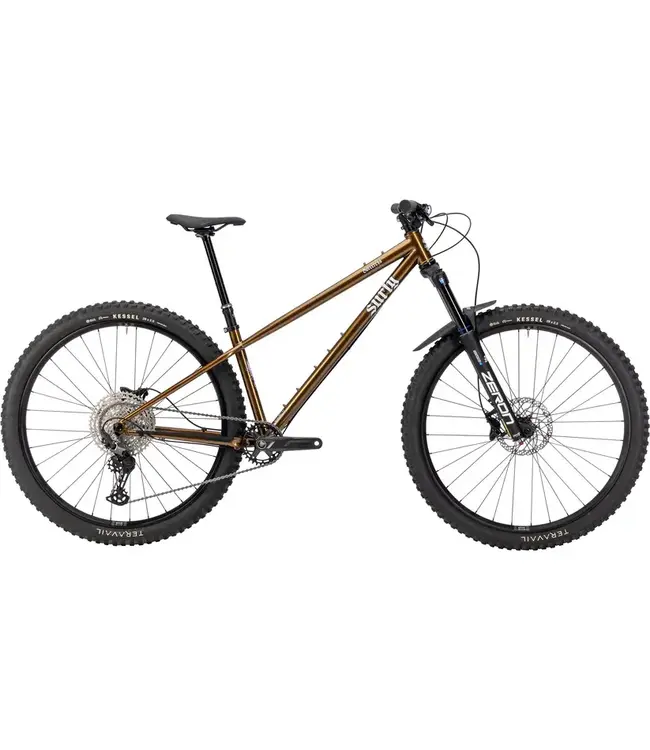

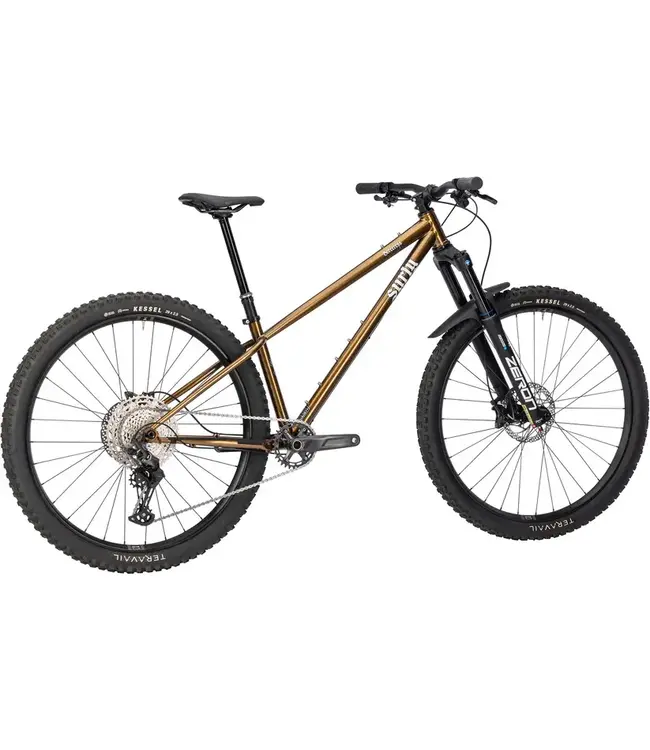

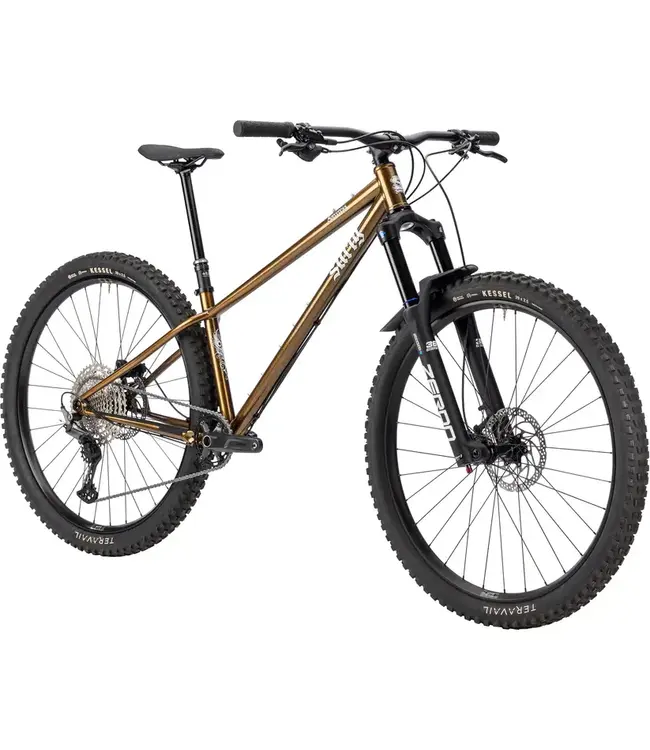

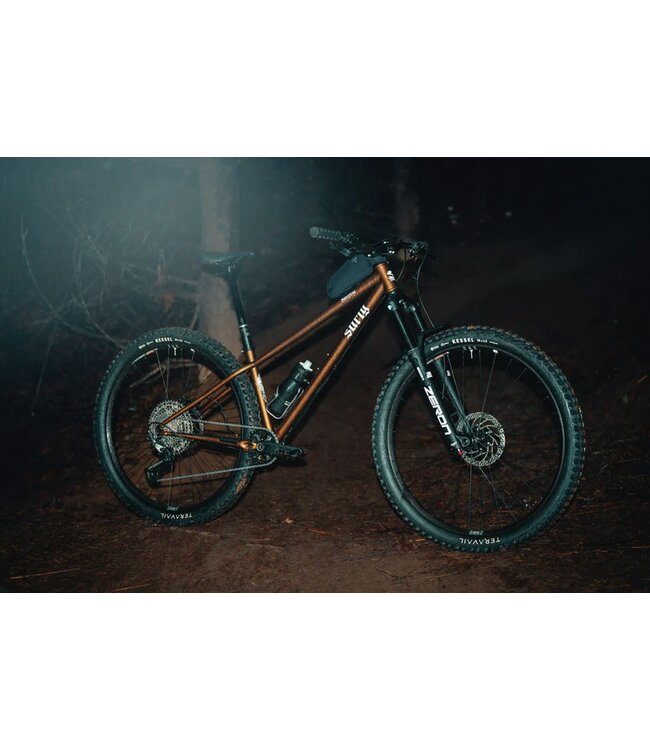

A Trail-born Steel Shapeshifter



Our modern trail hardtail with geared and single-speed abilities, Sorceress conjures a spellbinding singletrack experience wherever and whenever you summon it.

Let Sorceress be your guide through steep and gnarly dirt realms; it thrives on flowy, feature-rich singletrack and techy descents.

Sorceress channels our modern trail geometry: a long front center, steep seat tube angle, and slack headtube angle conjure playful riding, stable footing, and efficient climbing (plus the power to levitate). And with maximized standover and room for longer dropper posts, you get less saddle interference and more space to send it.

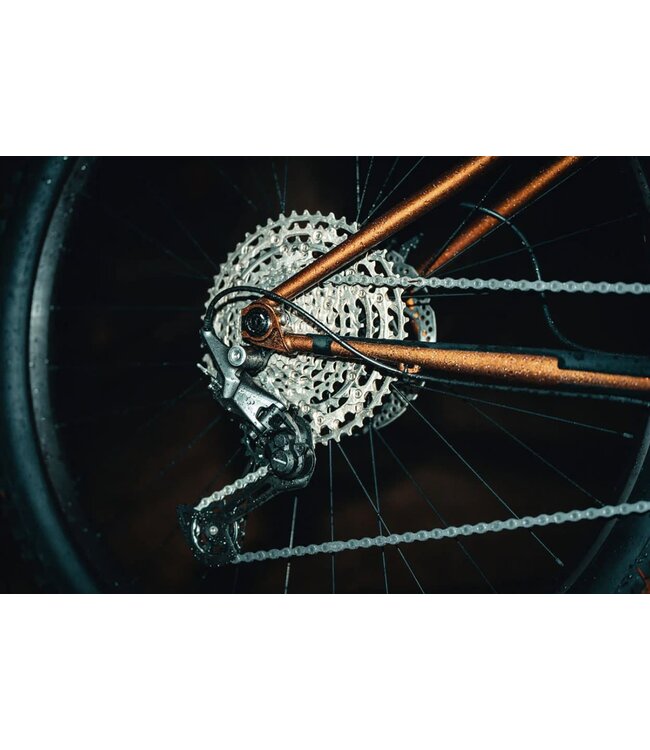

The alchemy of Surly Natch steel tubing, tuned specifically for Sorceress, gives it a lively yet smooth ride quality. True to form, Sorceress is a shapeshifter: we worked with the wizards at SRAM to develop our new patent-pending DUH dropout system. This grants you the power to run gears with a UDH hanger or Full-Mount drivetrain or swap in a single-speed chip.

Whatever trail magic you seek, Sorceress can summon it.

  • Steel frame with modern, hard-charging trail geometry designed around a 140mm travel suspension fork for a nice balance of playfulness, efficiency, and control
  • DUH dropout system (patent pending) allows for SRAM UDH, Full-Mount, and single-speed drivetrain setups. Complete bike comes with the DUH configuration is it sold as. DUH conversion parts sold separately.
  • Room for two bottles on MD–XL sizes; one bottle on XS–SM sizes
  • Inclusive standover clearance and maximized dropper post fit designed to welcome riders from 4′9″ (146cm) to 6′6″ (199cm)
  • Shimano Deore 12-speed drivetrain for smooth, intuitive shifting and a wide gear range
  • Shimano MT420 4-piston hydraulic disc brakes for consistent, confident stopping power
  • Teravail Kessel tires (29 x 2.5″ or 27.5 x 2.5″ on XS) for enhanced traction, control, and grip



Specifications

Build Kit

Frameset

Frame

Sorceress - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated. Includes Silicone chainstay protector, 1mm thick.

Color

Hot Honey Bling

Suspension Fork

SR Suntour Zeron36 Boost EQ 29", 15 x 110mm, 44mm offset, 140mm travel (27.5" on XS), Short fender included

Components

Headset

FSA Orbit ITA

Seatpost Clamp

Surly Stainless 33.1mm clamp

Seatpost

TranzX YSI05 +RAD Dropper Post w/ Shimano MT500 I-Spec EV Dropper Lever, 30.9mm (170mm travel on XS, 200mm travel on SM-XL)

Stem

Promax DA-205 Alloy

Grips/Bar Tape

Velo Ultra Light Foam

Saddle

WTB Solano Medium

Handlebar

TranzX Alloy 31.8mm (0mm rise on XS/SM, 20mm rise on MD/LG, 38mm rise on XL)

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M6100 SGS

Cassette

Shimano Deore M6100, 10-51t, 12spd

Chain

KMC X12 EPT Anti-Rust

Crankset

Shimano MT512, 32T

Shifter

Shimano Deore M6100, I-Spec EV

Brake Levers

Shiamno Deore M4100

Brake Calipers

Shimano MT420, 4 piston

Bottom Bracket

Shimano MT501 BSA 73mm

Rotors

Shimano RT30 180/180, Center Lock

Wheels

Front Tire

Teravail Kessel 29 x 2.5" Durable Casing (27.5" on XS), WTB TCS Sealant Included

Rear Tire

Teravail Kessel 29 x 2.5" Durable Casing (27.5" on XS), WTB TCS Sealant Included

Front Hub

Shimano TC500 15x110mm, 32h, Center Lock

Rear Hub

Shimano TC500 12x148mm, 32h, Center Lock

Spoke

14G Black

Rim

WTB ST i30 29" TCS 2.0, 32h (27.5" on XS)

Weight

Complete Bike

33 lb 14 oz for Medium

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size X-Small (27.5") Small (29") Medium (29") Large (29") X-Large (29")
A. Effective Top Tube 560.0 590.0 617.0 645.0 675.0
B. Stand Over 730.0 763.0 782.0 796.0 809.0
C. Reach 415.0 437.0 463.0 484.0 507.0
D. Stack 580.0 614.0 618.0 646.0 673.0
E. Total Seat Tube Length 300.0 330.0 360.0 410.0 460.0
F. Headtube Length 95.0 95.0 100.0 130.0 160.0
G. Headtube Angle
64.0
65.0
65.0
65.0
65.0
H. Seat Tube Angle
76.0
76.0
76.0
76.0
76.0
I. BB Drop 55.0 65.0 65.0 65.0 65.0
J. BB Height 303.0 314.0 314.0 314.0 314.0
K. Chainstay Length 410.0 429.0 429.0 429.0 429.0
L. Fork Length Axle to Crown 498.0 518.0 518.0 518.0 518.0
M. Fork Offset 44.0 44.0 44.0 44.0 44.0
N. Wheelbase 1127.0 1166.0 1193.0 1227.0 1263.0
Crank Arm Length 165.0 165.0 165.0 170.0 170.0
Handlebar Width 740.0 740.0 800.0 800.0 800.0
Recommended Rider Height 146.0 - 159.0 156.0 - 169.0 166.0 - 179.0 177.0 - 189.0 187.0 - 199.0
Stem Length 45.0 45.0 45.0 45.0 45.0

Measurements based on:

  • Measurements are based on a 140mm fork at 25% sag. Fully extended fork geo is 533x44mm (XS) and 553x44mm (SM-XL). Measurements are based on a 27.5x2.6" (XS) and 29x2.6" (SM-XL) tire with an outer diameter of 716mm (XS) and 757mm (SM-XL). Standover is measured at the middle of the top tube with the fork fully extended.



Frame Specs

  • Max Tire Outer Diameter27.5/29" x 2.6" w/o fender
  • Frame Construction4131 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
  • Suspension Fork Length (Travel)572 X 44mm (29” 150mm)
  • Rear Axle Size12 x 148mm, M12 x P1.0 x 175mm, TL 14mm
    Single Speed Thru-axle; FS0270
  • Rear Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
  • Front Brake (Rotor)See suspension fork details
  • Headset - UpperZS44/28.6
  • Headset - LowerEC44/40
  • SeatpostØ30.9mm
  • Dropper Post CompatibleYes
  • Seatpost ClampØ33.1mm
  • Max Post InsertionXS: 247mm | SM: 277mm | MD: 304mm | LG: 356mm | XL: 408mm
  • Front Derailleur TypeN/A
  • Bottom Bracket73mm threaded (1.37" x 24TPI)
  • Crankset (Max Ring)1x (55CL): 32T
  • Bottle Mounts1 Three-Pack (XS - SM), 1 Standard + 1 Three-Pack (MD-XL)
