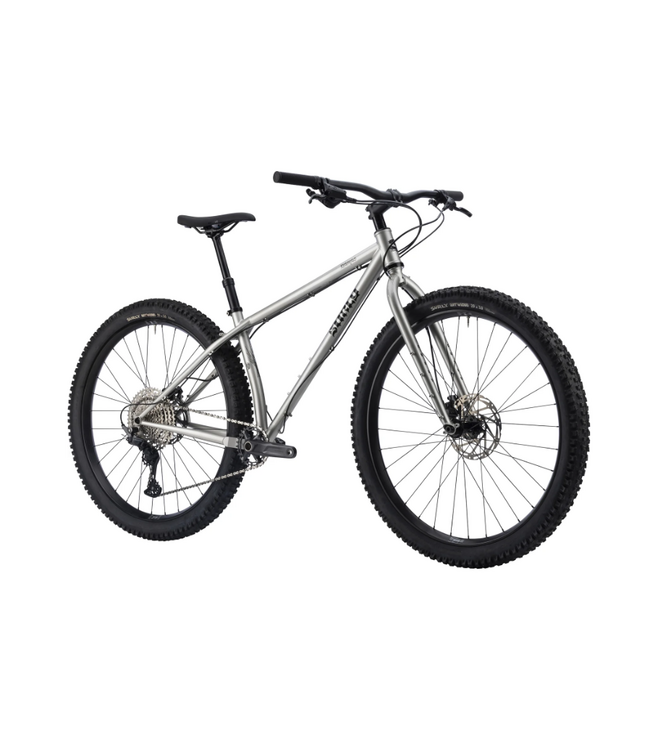

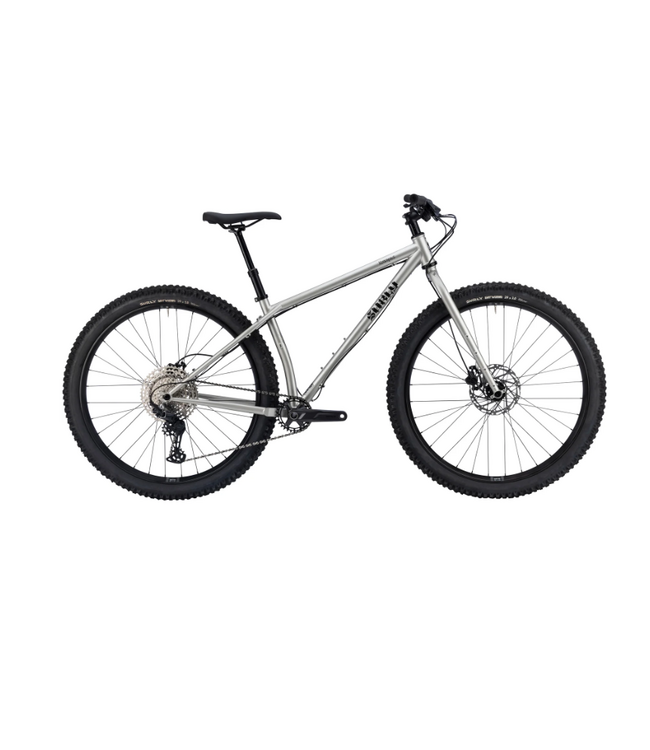

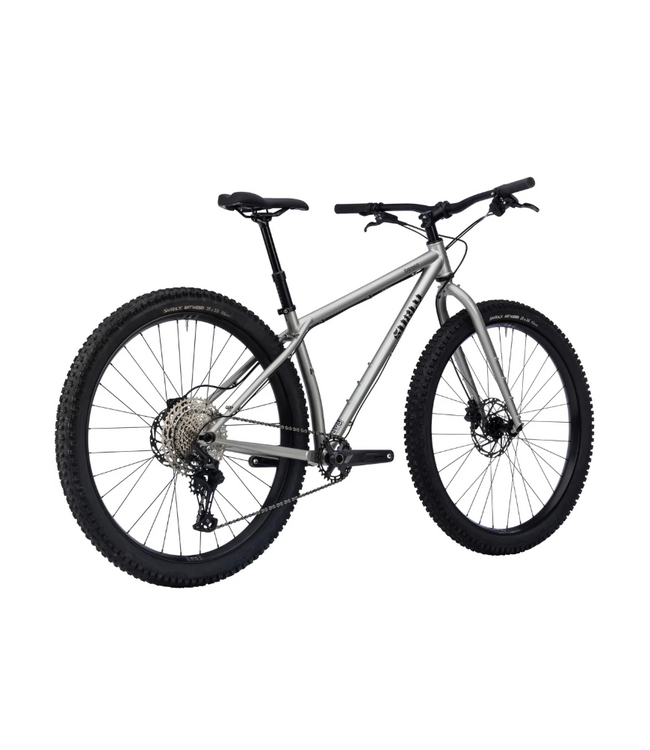

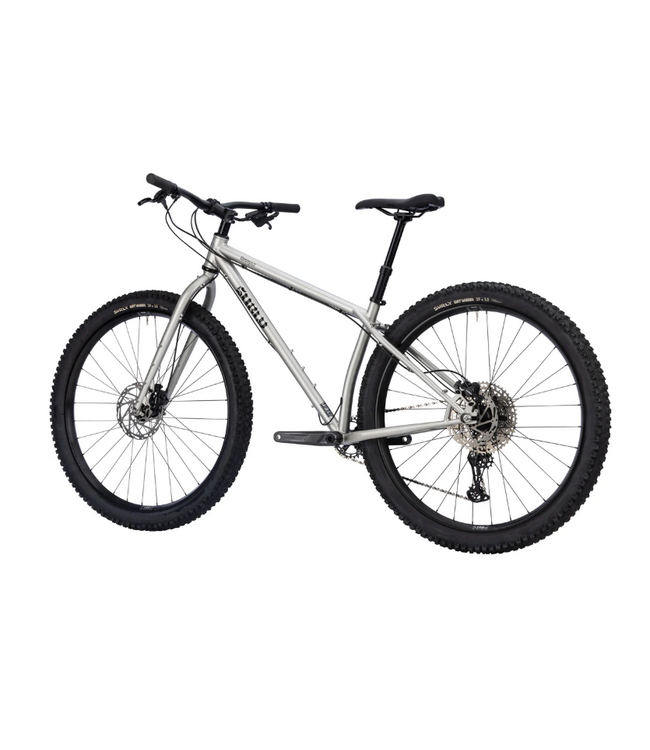

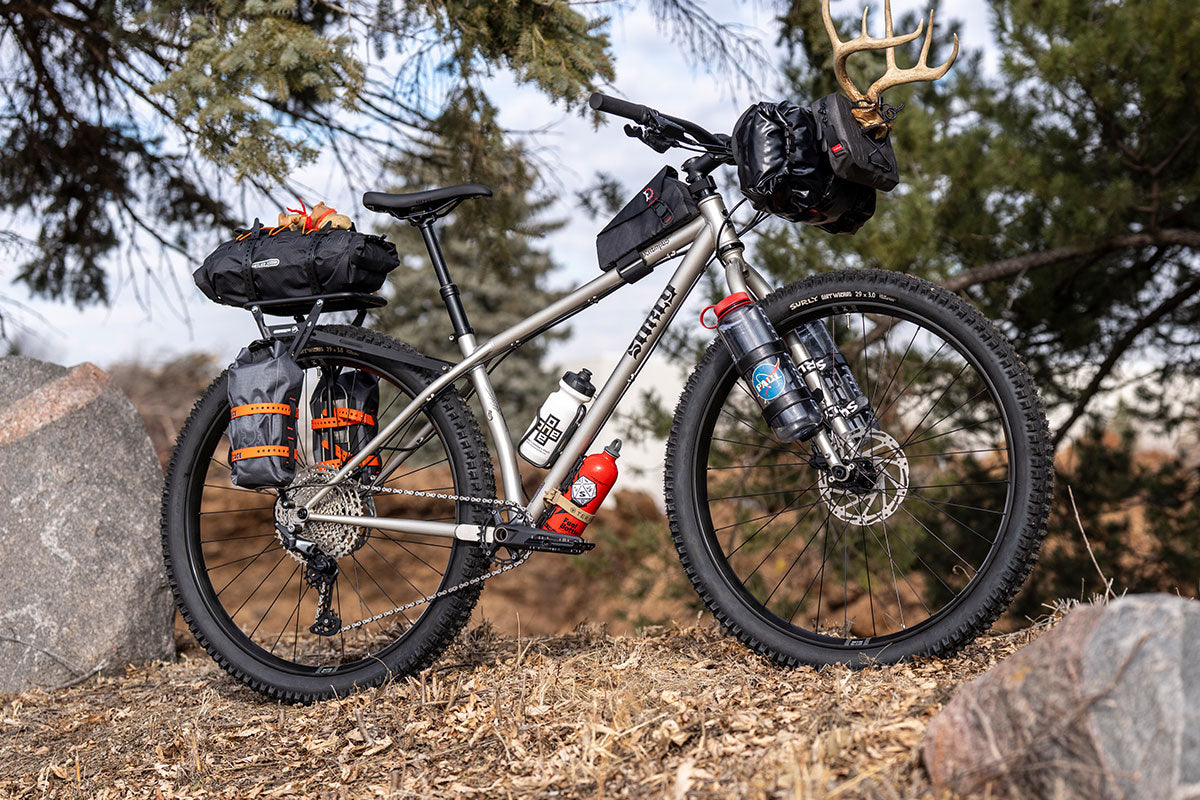

Surly Krampus Bike Salmon Skin Silver

Information
Reviews

Breaking the Mold with a 29er Bike

As the first “plus” bike to hit the market, Krampus changed the way many people approach trail riding. It’s shown people the light of how high volume, large diameter tires can vastly improve the ride experience. It’s also done a bang-up job dispelling the myth that big tires make you slow.

Krampus is kind of like the opposite of a mullet: long in the front and short in the rear. With a long toptube and compact chainstays, it takes trail-shredding abilities to the next level. A mullet may be business in the front, party in the back but Krampus makes partying its business.

"Lean back, hang on, and ride that wild horse." -Thor

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Clearance for 29" x 3" tires

Specifications

Build Kit

Frameset

Frame

Surly Krampus - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flaired tubes, TIG welded, E.D. coated

Color

Salmon Skin Silver

Fork

Surly Krampus - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

Headset

FSA Orbit ITA

Seatpost Clamp

Surly Stainless, 33.1mm

Seatpost

TranzX JD-YSP15 Dropper, 30.9mm, 120mm travel

Stem

Promax DA-296, 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt Medium

Handlebar

Salsa Rustler

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano M6100 Deore SGS

Cassette

Shimano M6100 Deore, 10-51t, 12 speed

Chain

KMC X12 Anti-Rust

Crankset

Shimano MT511, 30T

Shifter

Shimano M6100 Deore

Brake Levers

Tektro HD-M275 or HD-M3120

Brake Calipers

Tektro HD-M275 or HD-M3120, 2 piston

Bottom Bracket

Shimano MT501, BSA

Rotors

Tektro 180/160, 6-Bolt

Wheels

Front Tire

Surly Dirt Wizard 29 x 3" 60tpi, Tubeless Ready, WTB TCS Sealant Included

Rear Tire

Surly Dirt Wizard 29 x 3" 60tpi, Tubeless Ready, WTB TCS Sealant Included

Front Hub

Novatec 15x110mm, 32h

Rear Hub

Novatec 12x148mm, 32h

Spoke

14G Black

Rim

WTB ST i40 TCS 2.0 29"

Weight

Complete Bike

30 lb 14 oz for Medium

*Specifications are subject to change without notice

Geometry

Size	Small	Medium	Large	X-Large
A. Effective Top Tube	585.0	610.0	635.0	660.0
B. Stand Over	770.0	797.0	825.0	853.0
C. Reach	404.0	426.0	448.0	470.0
D. Stack	593.0	602.0	612.0	621.0
E. Total Seat Tube Length	368.0	419.0	470.0	521.0
F. Headtube Length	90.0	100.0	110.0	120.0
G. Headtube Angle	69.0	69.0	69.0	69.0
H. Seat Tube Angle	73.0	73.0	73.0	73.0
I. BB Drop	65.0	65.0	65.0	65.0
K. Chainstay Length	435.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	483.0	483.0	483.0	483.0
M. Fork Offset	47.0	47.0	47.0	47.0
N. Wheelbase	1087.0	1113.0	1138.0	1164.0
Crank Arm Length	165.0	165.0	170.0	170.0
Handlebar Width	750.0	800.0	800.0	800.0
Recommended Rider Height	162.0 - 173.0	170.0 - 183.0	180.0 - 190.0	188.0 - 198.0
Stem Length	70.0	70.0	70.0	80.0

Frame Specs

Design Wheel/Tire Sizes29 x 3.0"
Max Tire Outer Diameter29 x 3.0" (Different tire and rim combinations will result in different clearances. Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame. For suspension fork tire clearance, please reference the fork manufacturer's website.)
Frame Construction4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Fork Construction4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Suspension Fork Length (Travel)Max. Suspension fork length: 550 x 51mm (29+ 120mm) (Suspension fork length listed at full extension, not at sag)
Rigid Fork Length483mm
Fork Offset47mm
Axle to Crown483mm
Rear Spacing"Gnot-Boost" 145mm; 12 x 142mm or 12 x 148mm (Surly axle included) / 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Rear Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
Front Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
Headset - UpperZS44/28.6
Headset - LowerEC44/30
Front Spacing15 x 110mm
Steerer TubeØ28.6mm (1-1/8")
Crown RaceØ30mm (1-1/8")
Stem ClampØ28.6mm (1-1/8")
SeatpostØ30.9mm
Dropper Post CompatibleYes
Seatpost ClampØ33.1mm
Front Derailleur Clamp(Ø34.9mm)
Front Derailleur TypeHigh direct mount top-pull (Ø34.9mm); 26mm offset adapter (not included) for 142 or 135mm rear hub spacing; 29mm offset adapter (not included) for 148mm rear hub spacing
Bottom Bracket73mm threaded (1.37" x 24TPI)
Crankset (Max Ring)1x (Mtn): 28T / 1x (Boost): 30T / 2x (Boost): 24/36T (Listed chainring clearance is worst-case scenario. Clearances vary widely depending on components and configurations)
Bottle Mounts1 Standard + 1 Three-Pack
Rear Fender MountsYes
