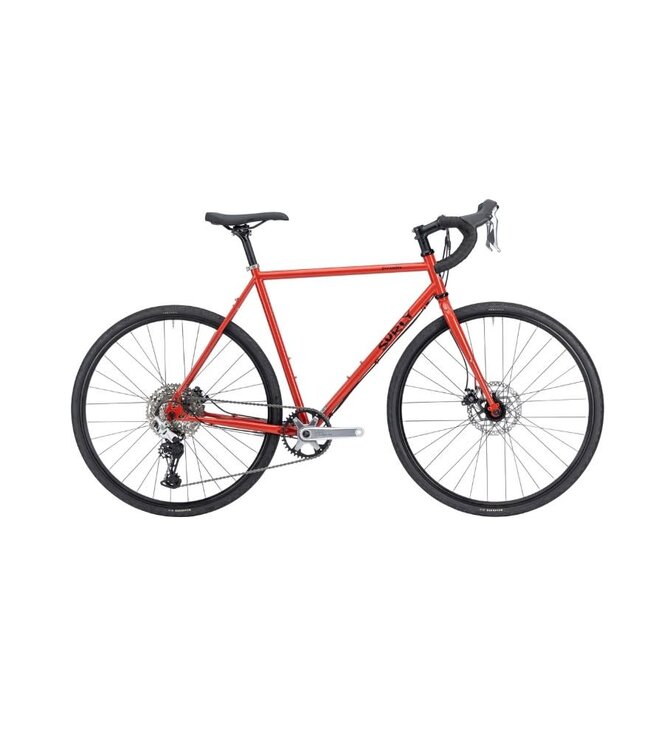

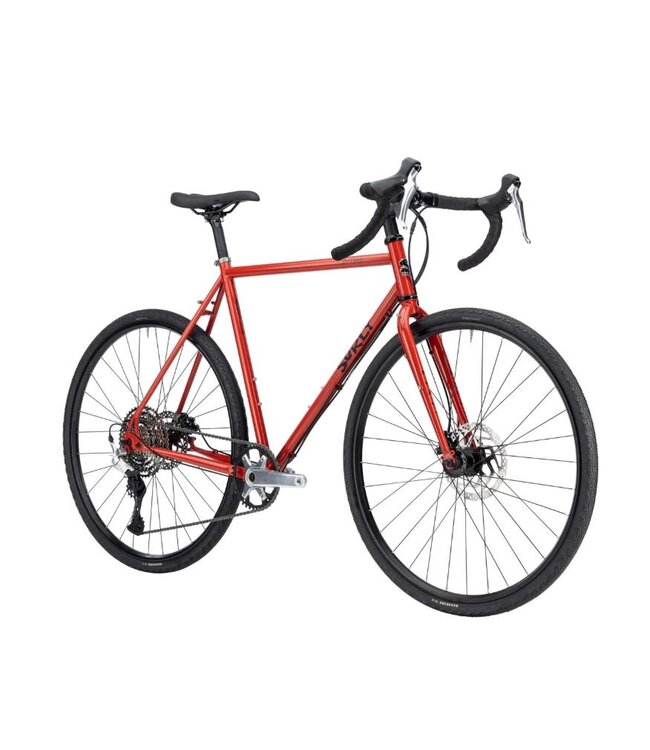

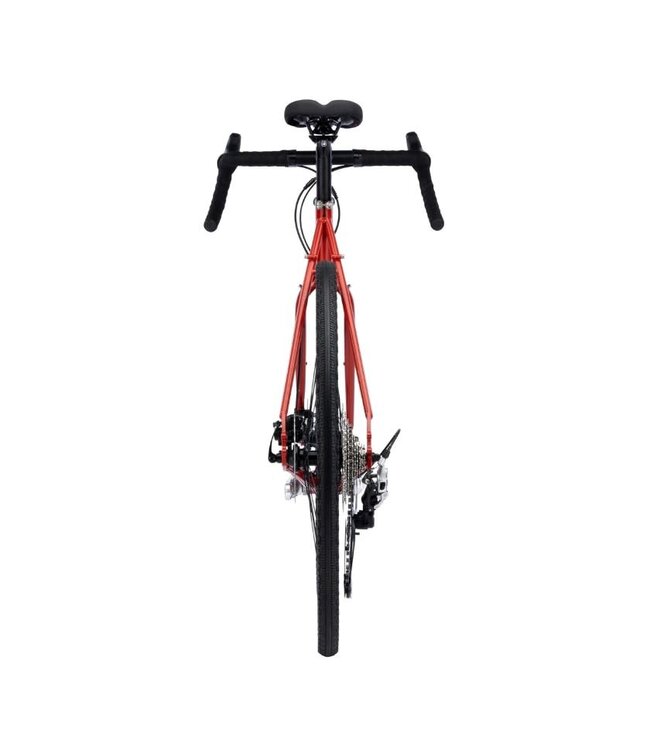

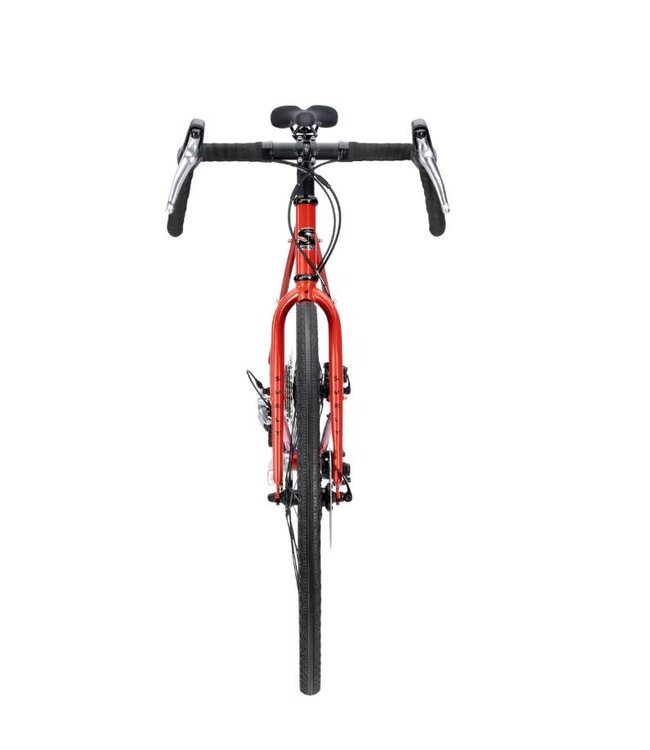

Surly 26 Preamble Drop Bar Bike Red Hot Cheddar

$2,690.00 Incl. tax
Availability:
Damn! I'm out of stock today! To order me call 07 3368 2324.
Delivery time:
STORE PICK UP ONLY - FOR IN STORE PURCHASE ONLY

Open Tuesday to Saturday
Professional Workshop
MTB & Road Bikes for Hire
Gift Vouchers Available

Nothing More is Needed. Nothing Less Will Do.

The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.

Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.

  • Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
  • Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
  • Sloping top tubes on XS and Small frames for improved standover and comfort
  • To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
  • Custom-cast single-position vertical dropout

Specifications

Build Kit

Frameset

Frame

Surly Preamble, 100% Chromoly steel tubing, E.D. coated

Color

Red Hot Cheddar

Fork

Surly Preamble, 100% Chromoly steel fork, Disc Only

Components

Headset

Cane Creek 40 OR FSA Orbit MX

Seatpost

Kalloy 27.2 x 300mm, no offset

Stem

TranzX JD-ST123A, Alloy

Grips/Bar Tape

Velo Black Cork

Saddle

WTB Volt Medium

Handlebar

TranzX JD-RA48A, Alloy

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano CUES U6000 GS, Silver

Cassette

Shimano CUES LG400, 11-48t, 10spd, Silver

Chain

Shimano LG500

Crankset

Shimano CUES U6030, 40T, Silver

Shifter

Shimano CUES U3030, Silver

Brake Levers

Shimano CUES U3030, Silver

Brake Calipers

Shimano RS305, Mechanical

Bottom Bracket

Shimano RS501 BSA

Rotors

Shimano RT26, 160/160, 6-Bolt

Wheels

Front Tire

Teravail Washburn 650b x 35, 30tpi, Wire Bead (XS-SM)
Teravail Washburn 700c x 35, 30tpi, Wire Bead (MD-XL)

Rear Tire

Teravail Washburn 650b x 35, 30tpi, Wire Bead (XS-SM)
Teravail Washburn 700c x 35, 30tpi, Wire Bead (MD-XL)

Front Hub

Novatec QR x 100mm, 32h, 6-Bolt

Rear Hub

Novatec QR x 141mm, 32h, 6-Bolt

Spoke

14 Gauge Black

Rim

Shining DB-21, 32h

Weight

Complete Bike

26lb 14oz (Medium)

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size X-Small Small Medium Large X-Large
A. Effective Top Tube 500.0 545.0 570.0 600.0 630.0
B. Stand Over 722.0 776.0 826.0 863.0 901.0
C. Reach 352.0 381.0 391.0 404.0 421.0
D. Stack 517.0 535.0 567.0 605.0 643.0
E. Total Seat Tube Length 410.0 505.0 565.0 605.0 645.0
F. Headtube Length 120.0 135.0 130.0 170.0 210.0
G. Headtube Angle
70.0
71.0
72.0
72.0
72.0
H. Seat Tube Angle
74.0
73.0
72.5
72.0
72.0
I. BB Drop 54.0 54.0 66.0 66.0 66.0
K. Chainstay Length 420.0 420.0 435.0 435.0 435.0
L. Fork Length Axle to Crown 380.0 380.0 400.0 400.0 400.0
M. Fork Offset 47.0 47.0 44.0 44.0 44.0
N. Wheelbase 987.0 1013.0 1030.0 1055.0 1085.0
Crank Arm Length 165.0 170.0 170.0 175.0 175.0
Handlebar Width 380.0 400.0 420.0 440.0 460.0
Recommended Rider Height 152.4 - 165.1 162.56 - 172.72 170.18 - 182.88 180.34 - 190.5 187.96 - 200.66
Stem Length 80.0 80.0 90.0 100.0 100.0

Frame Specs

  • Max Tire Outer DiameterTire Clearance Frame:
    Size XS-SM:
    650b x 41 (w/ or w/o fenders)
    Size MD-XL:
    700c x 41 (w/ or w/o fenders)

    Tire Clearance Fork:
    650b: 650b x 42mm (w/ or w/o fenders)
    700c: 700c x 42mm (w/ or w/o fenders)
  • Frame Construction100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork Construction4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
  • Rigid Fork Length380mm: XS-SM
    400mm: MD-XL
  • Fork Offset47mm: XS-SM
    44mm: MD-XL
  • Rear Spacing"Gnot-Boost" 138mm
  • Rear Axle Size10 x 135mm or 10 x 141mm
  • Rear Brake (Rotor)Disc - 51mm I.S. (180mm max rotor)
  • Front Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
  • Headset - UpperEC34/28.6
  • Headset - LowerEC34/30
  • Front Spacing10 x 100mm
  • Steerer TubeØ28.6mm
  • Crown Race30mm (1-1/8")
  • SeatpostØ27.2mm
  • Dropper Post CompatibleNo
  • Seatpost ClampØ30.0mm
  • Front Derailleur ClampHigh direct mount top-pull (Ø28.6mm)
    26mm offset adapter (not included) for 135mm rear hub spacing
    29mm offset adapter (not included) for 141mm rear hub spacing
  • Bottom Bracket68mm BSA, threaded
  • Crankset (Max Ring)1x (47CL): 42T
    2x (47CL): 46/36T
  • Bottle Mounts2 Standard
  • Fork MountsFork crown and mid-blade rack mounts
  • Front Fender MountsYes
  • Rear Fender MountsYes
