All Road Touring Bike for Any Destination

Bridge Club is for those multi-surface outings — planned or unplanned. We've all run out the clock on a dirt tour and had to add in some paved shortcuts. Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Some people hear "bike touring" and immediately think of long-forgotten stretches of highway, small-town oddities, and roadside attractions. Some instantly recall desolate stretches of desert dirt roads or lush green forest trails. With Bridge Club, you can have your dessert and eat it too!

  • Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist
  • Run racks and panniers, framebags, or all of the above
  • Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category
  • Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)

Specifications

Build Kit

Frameset

Frame

Surly Bridge Club - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Color

Lingering Cranberry

Fork

Surly Cocktail Fork - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

Headset

FSA Orbit MX

Seatpost Clamp

Surly Stainless 30.0

Seatpost

Promax SP-2016, 27.2 x 350mm, 12mm offset

Stem

Promax DA-296, 31.8mm

Grips/Bar Tape

Velo Black

Saddle

WTB Volt Medium

Handlebar

Salsa Bend

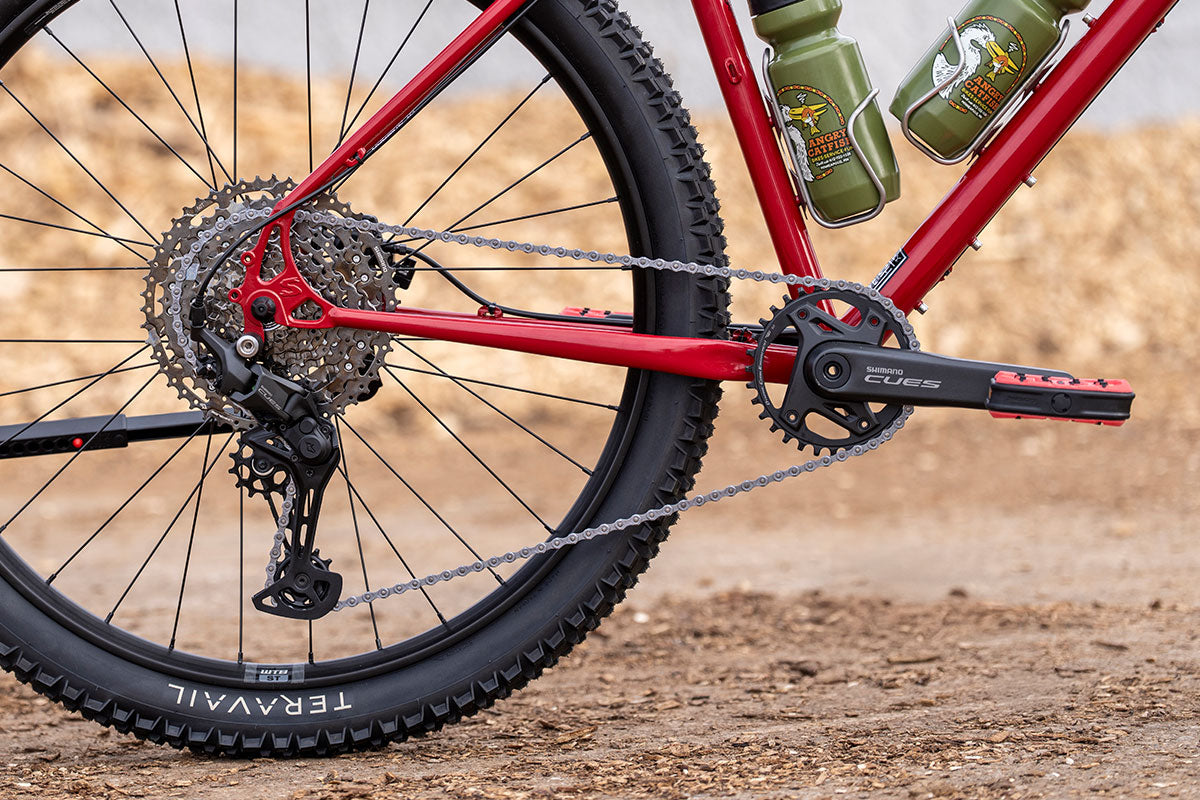

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Cues U6000 GS

Cassette

Shimano Cues LG400, 11-50t, 11spd

Chain

KMC eGlide EPT

Crankset

Shimano Cues U6000, 32T

Shifter

Shimano Cues U6000

Brake Levers

Tektro HD-M275/276

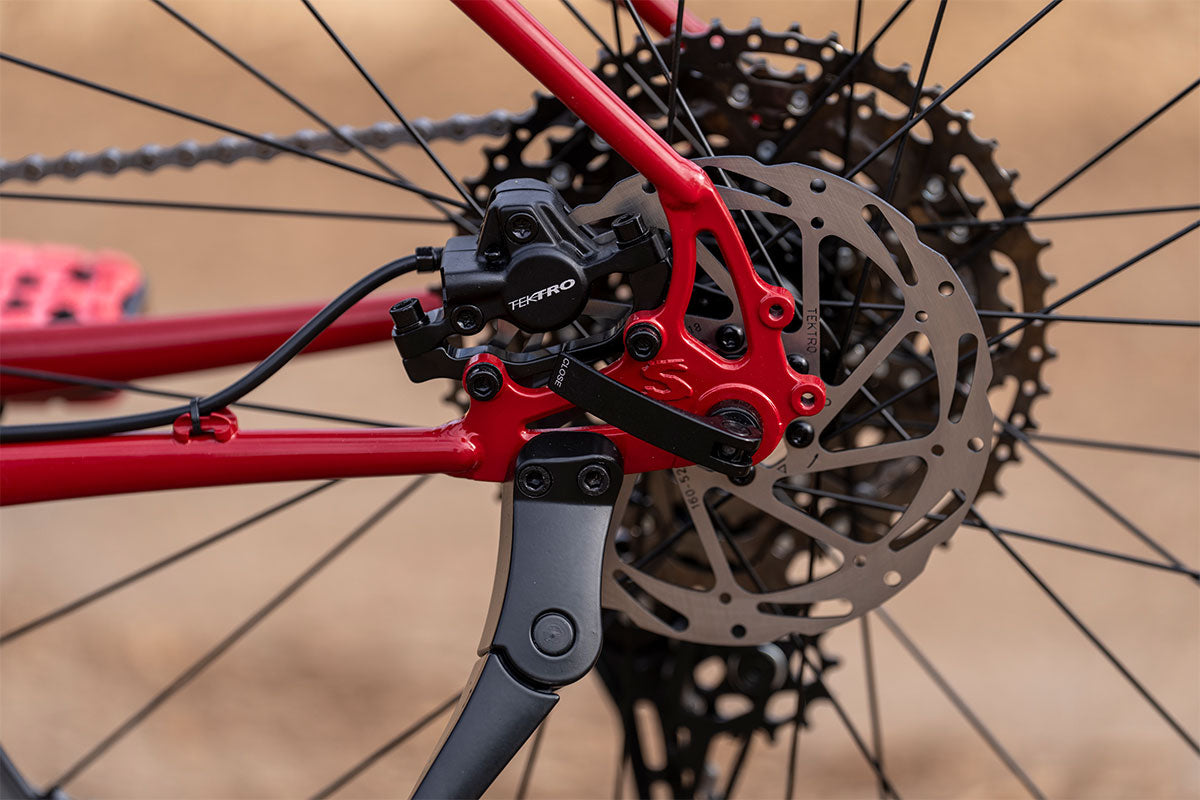

Brake Calipers

Tektro HD-M275/276, 2 piston

Bottom Bracket

Shimano BB-MT501

Rotors

Tektro 160/160, 6-bolt

Wheels

Front Tire

Teravail Ehline 27.5 x 2.5", Durable, 60tpi, Tubeless Ready, WTB TCS Sealant Included

Rear Tire

Teravail Ehline 27.5 x 2.5", Durable, 60tpi, Tubeless Ready, WTB TCS Sealant Included

Front Hub

Novatec QR x 100mm, 6-bolt, 32h

Rear Hub

Novatec QR x 141mm, 6-bolt, 32h

Spoke

14G Black

Rim

WTB ST i30 27.5", TCS 2.0, 32h

Weight

Complete Bike

29 lb 5 oz for Medium

*Specifications are subject to change without notice

Geometry

Geometry Diagram
Size X-Small Small Medium Large X-Large
A. Effective Top Tube 545.0 570.0 595.0 615.0 630.0
B. Stand Over 709.0 750.5 780.0 812.0 845.5
C. Reach 376.0 397.0 419.0 434.5 444.0
D. Stack 553.0 567.0 576.0 590.0 609.0
E. Total Seat Tube Length 335.6 406.4 457.2 508.0 558.8
F. Headtube Length 110.0 120.0 130.0 145.0 165.0
G. Headtube Angle
70.0
71.0
71.0
71.0
71.0
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 60.0 60.0 60.0 60.0 60.0
K. Chainstay Length 435.0 435.0 435.0 435.0 435.0
L. Fork Length Axle to Crown 420.0 420.0 420.0 420.0 420.0
M. Fork Offset 45.0 45.0 45.0 45.0 45.0
N. Wheelbase 1032.0 1047.5 1073.0 1093.0 1109.0
Crank Arm Length 170.0 170.0 170.0 170.0 170.0
Handlebar Width 700.0 700.0 740.0 740.0 740.0
Recommended Rider Height 145.0 - 160.0 155.0 - 170.0 165.0 - 180.0 175.0 - 191.0 185.0 - 201.0
Stem Length 80.0 80.0 90.0 90.0 100.0

Frame Specs

  • Design Wheel/Tire Sizes27.5 x 2.4"
  • Alternate Wheel/Tire SizesFrame clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders - Fork clearance: 26 x 3.0" (26 x 2.8" with fenders) / 27.5 x 2.8" (27.5 x 2.6" with fenders) / 700c x 47 with or without fenders
  • Frame Construction4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork Construction4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
  • Suspension Fork Length (Travel)N/A
  • Rigid Fork Length420mm
  • Fork Offset43mm
  • Axle to Crown420mm
  • Rear Spacing"Gnot-Boost" 138mm
  • Rear Axle Size10 x 135mm or 10 x 141mm
  • Rear Brake (Rotor)Disc - 51mm I.S. (180mm max rotor)
  • Front Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
  • Headset - UpperEC34/28.6
  • Headset - LowerEC34/30
  • Front Spacing10 x 100mm
  • Steerer TubeØ28.6mm (1-1/8")
  • Crown RaceØ30mm (1-1/8")
  • Stem ClampØ28.6mm (1-1/8")
  • SeatpostØ27.2mm
  • Dropper Post CompatibleNo
  • Seatpost ClampØ30mm
  • Front Derailleur ClampØ28.6mm
  • Front Derailleur TypeHigh direct mount top-pull (Ø28.6mm) 26mm offset adapter (not included) for 135mm rear hub spacing 29mm offset adapter (not included) for 141mm rear hub spacing
  • Bottom Bracket73mm threaded (1.37" x 24TPI)
  • Crankset (Max Ring)1x (Mtn): 34T / 2x (Mtn): 26/40T / 3x (Mtn): 22/36/44T / 1x (Boost): 40T / 2x (Boost): 32/42T
  • Bottle Mounts2 Three-Pack (XS) / 1 Standard + 2 Three-Pack (S - XL)
  • Fork Mounts2 Three-Pack, rack mounts (upper, lower, and mid-blade threaded)
  • Front Fender MountsYes
  • Rear Fender MountsYes

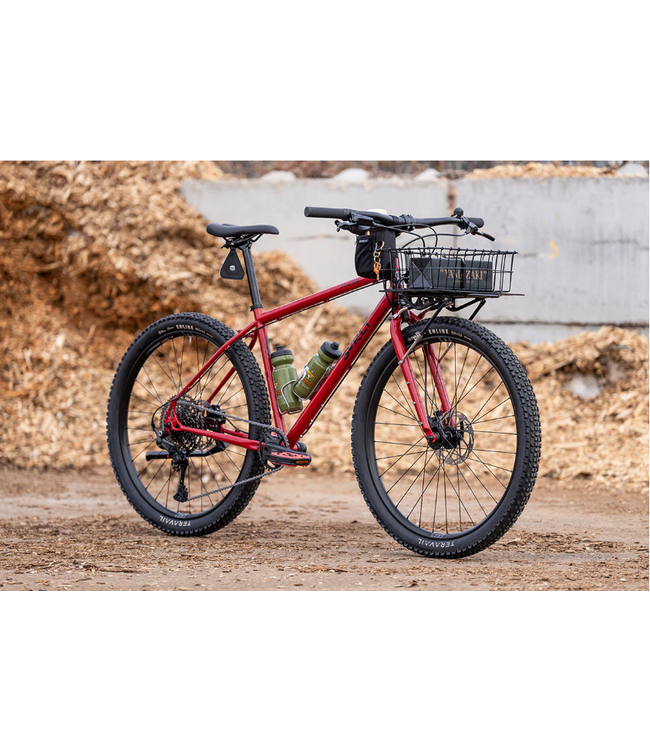

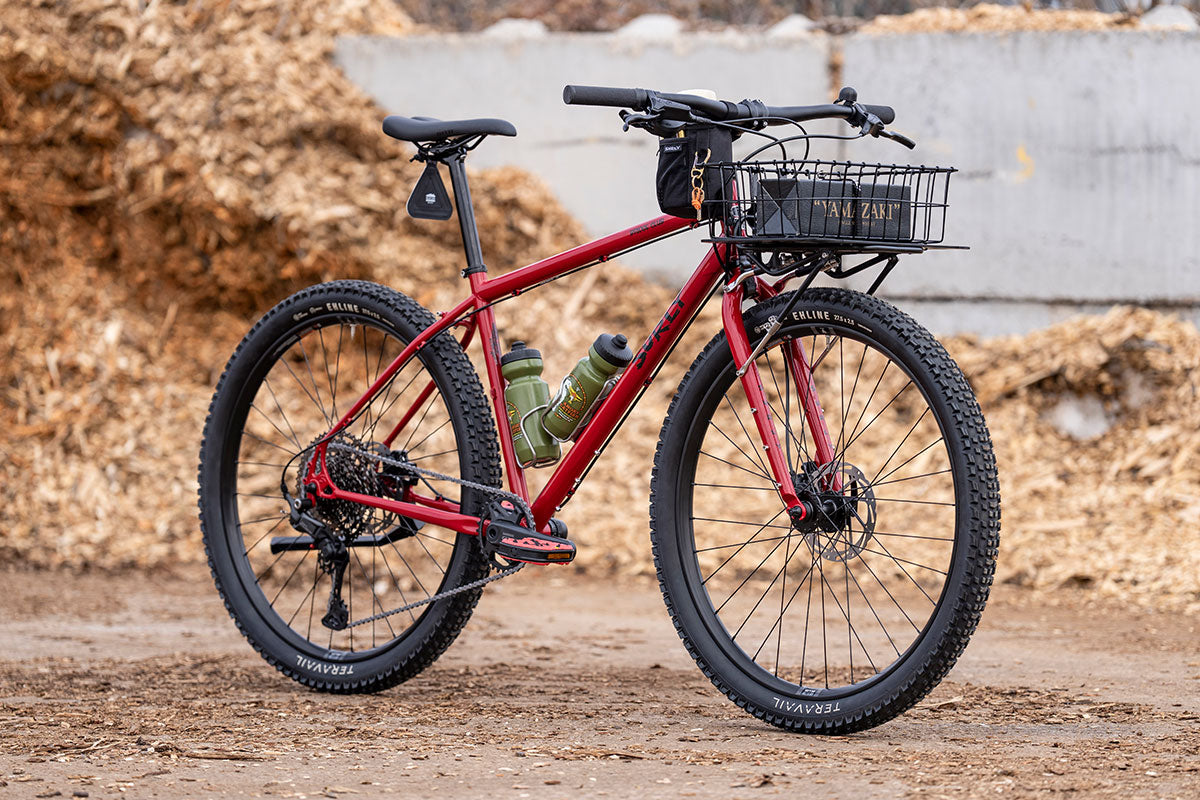

  • Red bicycle with a basket on a dirt path
