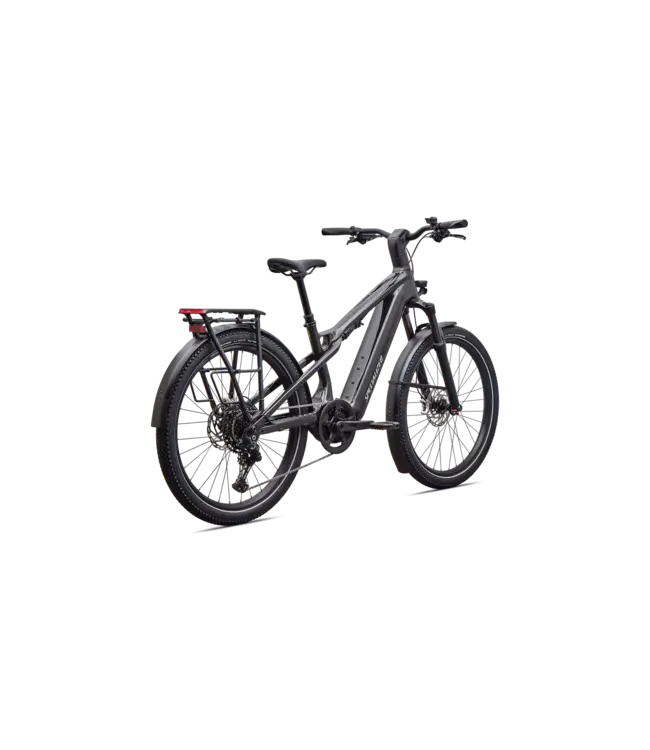

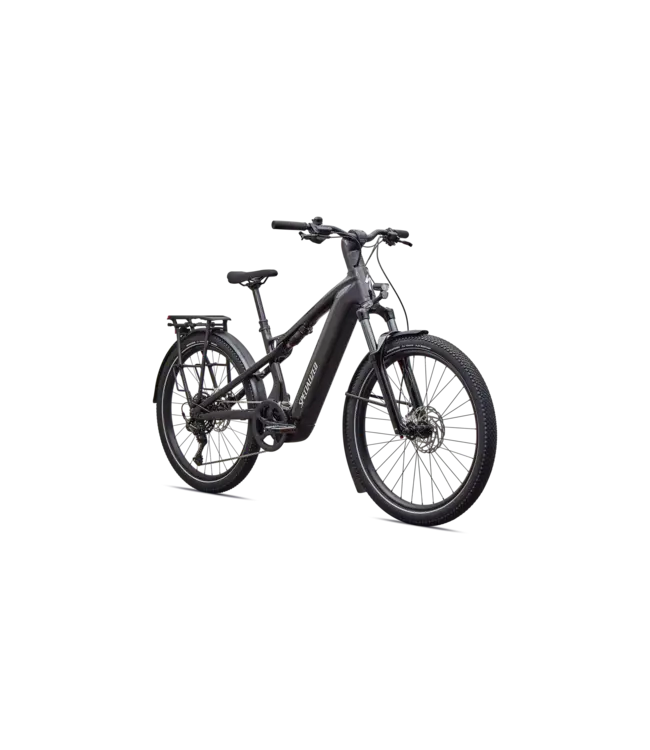

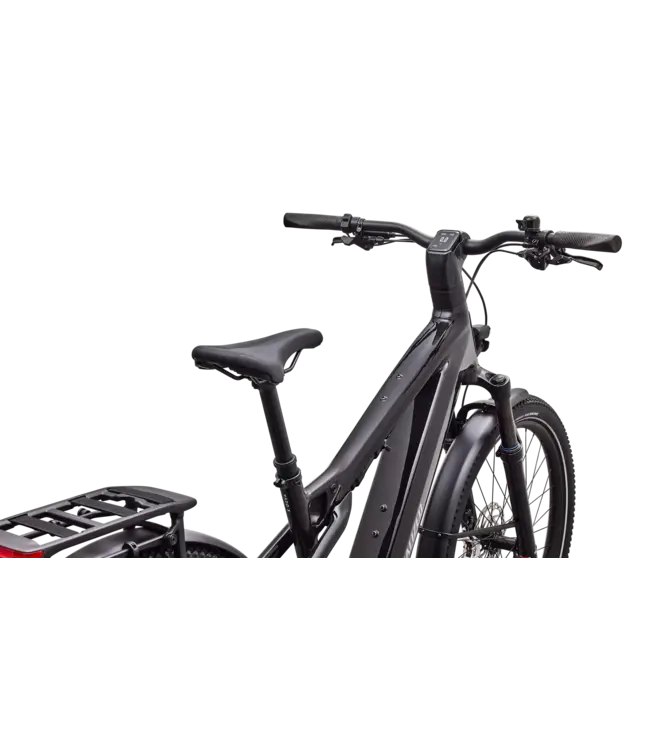

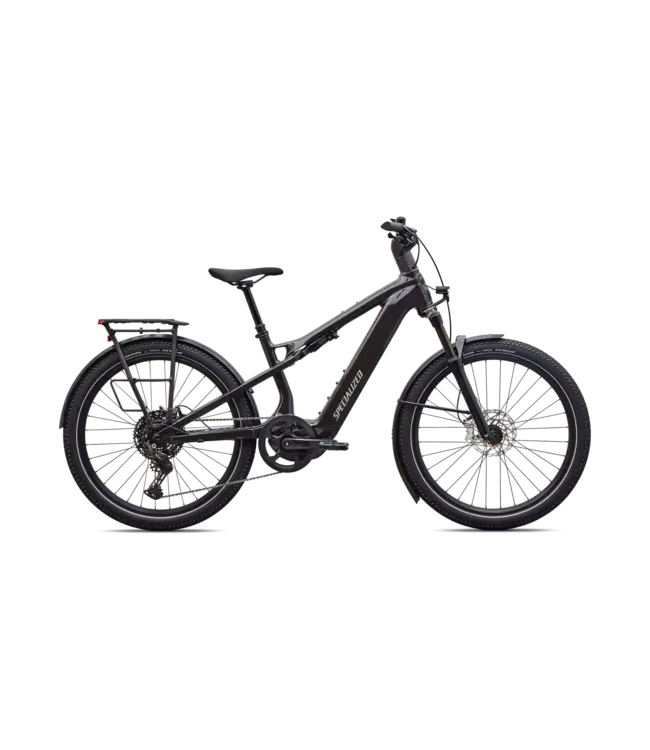

Specialized Turbo Vado 3 X 4.0 Gloss Obsidian / Satin Silver Dust Frost

Turbo Vado 3 X 4.0

Take A Ride on The Wild Side

When the ride demands more, Vado 3 X answers. From urban adventures to off-road trekking, this is effortless power, elevated by full-suspension confidence. Born from Levo 4’s SuperNatural DNA with instinctive power, exceptional comfort, and incredible ride-anywhere range. With its class-leading features like our Turbo System Lock and built-in Apple Find My, Vado 3 X keeps every ride calm, composed, and in control wherever the journey leads. The art of arrival - perfected.

At a Glance

Use

Full-suspension all-terrain e-bike

E-Bike System

Specialized 3.1 motor w/ 810 W & 105 Nm, 840 Wh Battery with up to 150 km range

Tires

All-terrain tires: 2.6" Hemisphere

Display

Customizable color display

Anti-Theft

Battery and Turbo system lock, with built-in Apple Find My

Phone Charging

USB-C port on the side of the screen for easy phone charging

Technical Specifications

E-bike

Battery: Specialized Turbo 840Wh, with Abus key lock

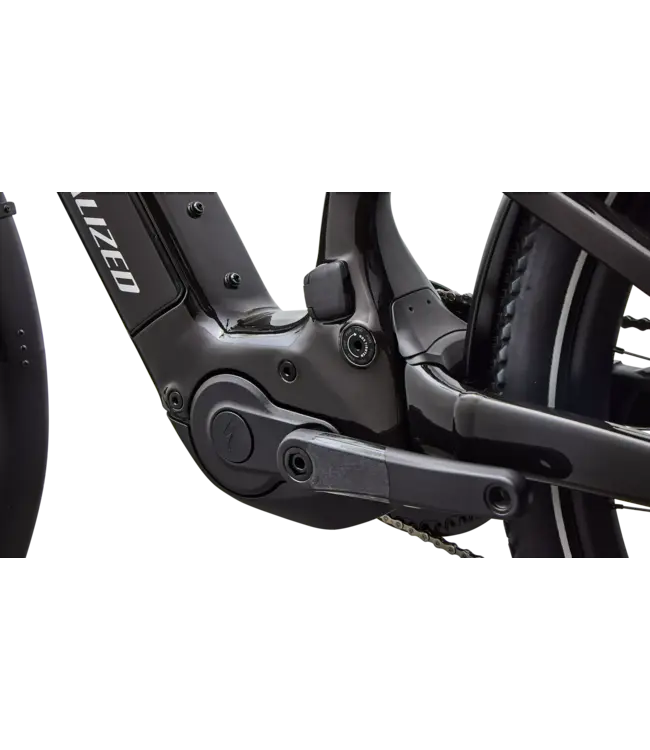

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power

Charger: Specialized 4amp charger

UI/Remote: Turbo ergonomic remote

Frameset

Seat Binder: Alloy, 38.6mm

Frame: Vado X frame, premium comfort with 120mm rear travel, side entry battery

Suspension

Rear Shock: Rock Shox Delux Select rear suspension, 120mm of travel

Fork: SR Suntour suspension fork, 130mm of travel, Stanchion 34mm, 15mm Thru axle, 27.5" wheel

Brakes

Front Brake: TEKTRO, HD-T5040, 4-piston caliper, extra thick 2.3mm rotor and 5mm brake pads

Rear Brake: TEKTRO, HD-T5040, 4-piston caliper, extra thick 2.3mm rotor and 5mm brake pads

Drivetrain

Crankset: 170mm, CL 55mm, w/BCD 110mm, 48t, chain guard

Chainrings: 48 Teeth with Chain Retention Technology

Rear Derailleur: Shimano CUES 11-speed w/ Shadow Plus

Cassette: Shimano CUES, 10-speed, 11-48t

Chain: Shimano LG

Shift Levers: Shimano, CUES, Right, 10-speed RAPIDFIRE PLUS

Wheels & tires

Rims: 27.5 front, 27.5 rear, 30mm inner width, 32h

Spokes: DT Swiss Elemental

Inner Tubes: Reinforced anti-flat 27.5X2.5/2.7, Schrader valve 60mm

Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Front Tire: Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6

Rear Tire: Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27.5X2.6

Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb

Cockpit

Handlebars: Alloy, Rise 34.4mm,31.8mm, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2mm, 690-730mm

Saddle: Body geometry, Rivo 2 Gel,168mm

Seatpost: Seatpost, Lowerable, 34.9mm, Offset 0mm, 100/125/150 Travel

Grips: Specialized Body Geometry

Stem: Stem with integrated colored display & USB-C phone charger, 31.8mm.

Accessories

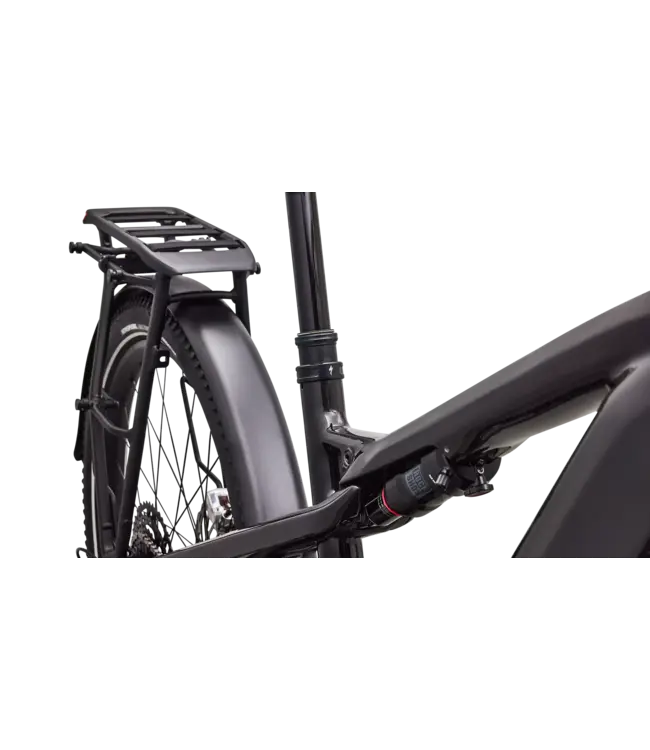

Rack: 25kg rear rack with integrated straps, QL3.1, MIK Stud, Arkel

Kickstand: Adjustable alloy kickstand

Bell: Bell

Fenders: Extra long fender, water diffusion, durable metal construction

Bike Lock: Key secured battery by Abus

Headlight: Lezyne POWER StVZO E500+, 500 Lumens w/ reflector

SWAT: MIK 25 kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)

Taillight: Rack integrated, automatic braking detection

Pedals: Turbo pedals anti-slip

Product details

Product ID: 293140

Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

Weight: 30.9 kg (68 lb, 2.0 oz)

Weight Size: MD

Geometry

	S	M	L	XL
Crank Length	170	170	170	170
Handlebar Width	730	730	730	730
Stem Length	60	60	60	60
Saddle Width	168	168	168	168
Seatpost Length	345	402	402	445
Stack	618	625	640	667
Reach	430	450	475	500
Head-Tube Length	131	139	155	185
Head-Tube Angle	66	66	66	66
B-B Height	330	330	330	330
B-B Drop to front	30	30	30	30
Trail	112	112	112	112
Fork Length (full)	531	531	531	531
Fork Rake/Offset	44	44	44	44
Front-Center	740	764	795	832
Chain-Stay Length	473	473	473	473
Wheelbase	1212	1235	1267	1304
Top-Tube Length (horizontal)	607	632	665	700
Bike Stand-Over Height	747	747	747	747
Seat-Tube Length	390	415	435	460
Seat-Tube Angle	74	74	74	73
