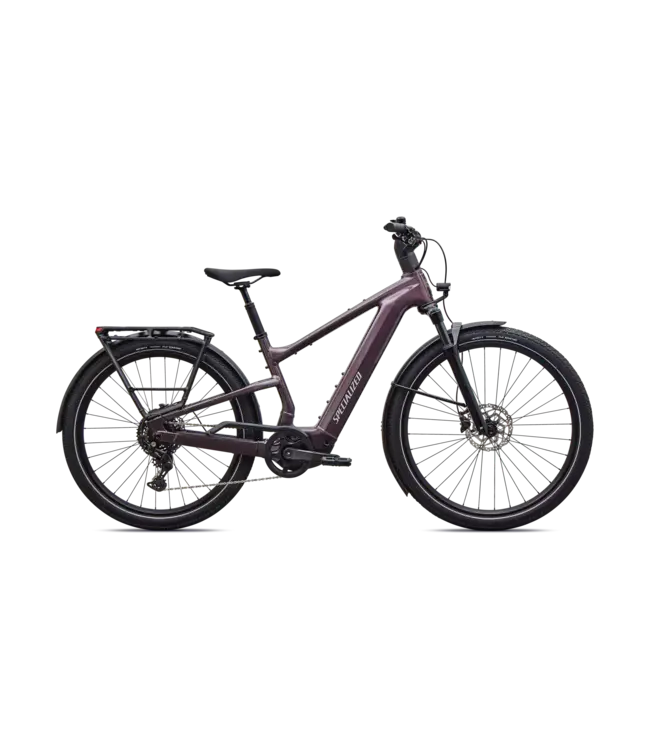

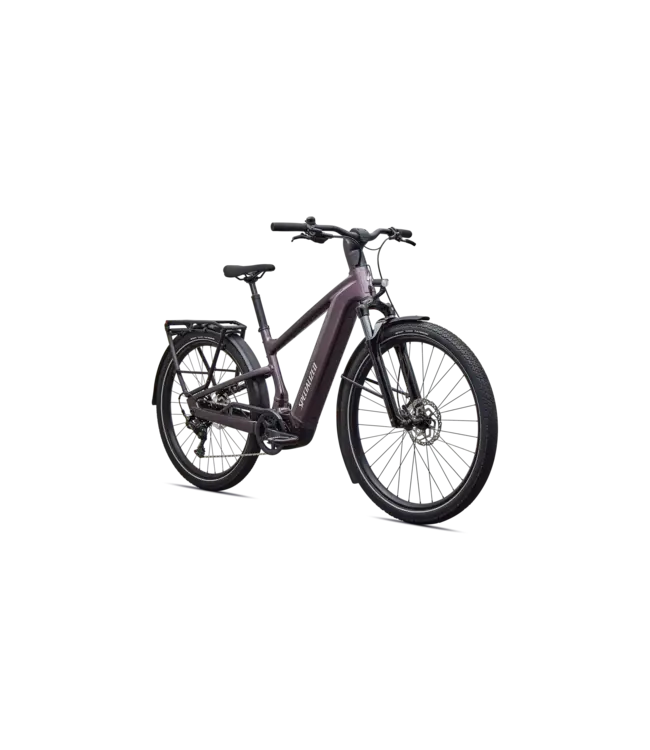

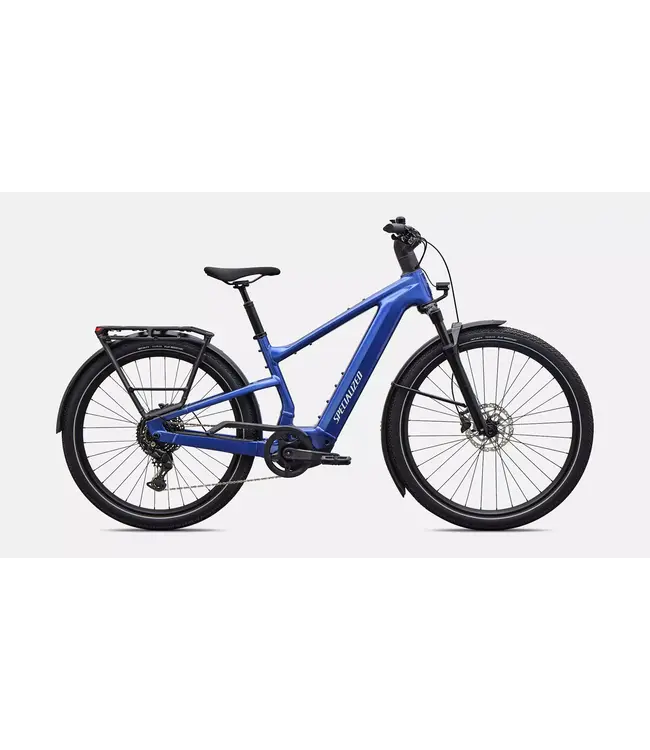

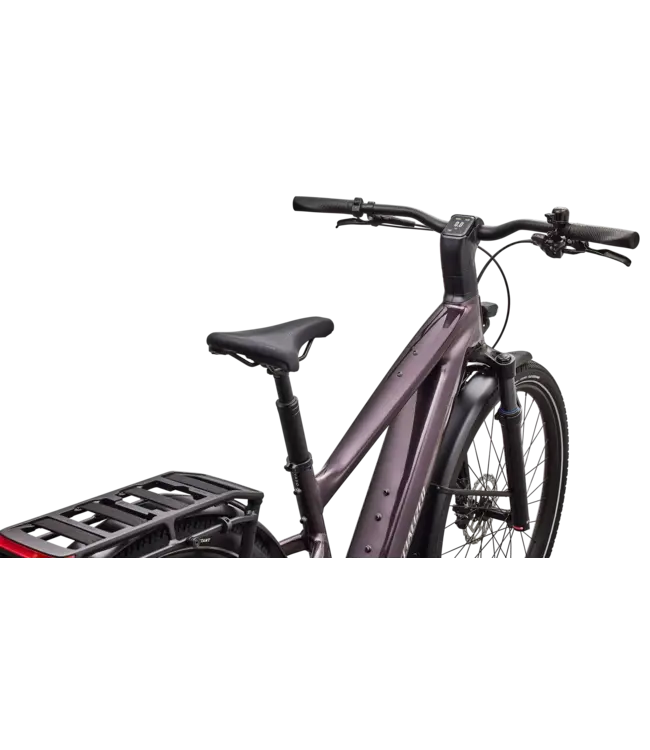

Specialized Turbo Vado 3 4.0

Turbo Vado 3 4.0

Arrive Better

Vado 3 delivers refined performance for fast city commutes, weekend adventures, and the effortless power that moves as naturally as you do. Pure efficiency meets unmatched simplicity, born from Levo 4’s SuperNatural DNA, with instinctive power and exceptional ride-anywhere range. With its class-leading features like our Turbo System Lock and built-in Apple Find My, Vado 3 keeps you calm, composed, and in control at speed. The art of arrival - perfected.

At a Glance

Use

Full power touring e-bike

E-Bike System

Specialized 3.1 motor w/ 810 W & 105 Nm, 840 Wh Battery with up to 150 km range

Tires

Touring tires: 2.3" Infinity

Display

Customizable color display

Anti-Theft

Battery and Turbo system lock, with built-in Apple Find My

Phone Charging

USB-C port on the side of the screen for easy phone charging

Technical Specifications

E-bike

Battery: 840Wh battery

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power

Charger: Specialized 4amp charger

UI/Remote: Turbo ergonomic remote

Frameset

Seat Binder: Alloy, 38.6mm

Frame: Vado 3 frame, comfort optimized geometry, side entry battery

Suspension

Fork: SR Suntour suspension fork, 90MM of travel, Stanchion 34MM, 15MM Thru axle, 29" wheel

Brakes

Front Brake: Shimano BR-MT200, hydraulic disc, 180mm

Rear Brake: Shimano BR-MT200, hydraulic disc, 180mm

Drivetrain

Crankset: 170mm, CL 55mm, w/BCD 110mm, NW 40T, w/ Chain Guard

Chainrings: 40 Teeth with Chain Retention Technology

Chaincase: Vado 3 Custom Chaincase

Chain: KMC eGlide for 11-Speed CUES

Rear Derailleur: Shimano CUES 9-Speed

Shift Levers: Shimano CUES 9-Speed with Optical Gear Display

Cassette: Shimano CUES 9-speed, 11-41t

Wheels & tires

Rims: 29 front, 27.5 rear, 30mm inner width, 32h

Inner Tubes: Anti flat 29X1.9-2.3 Schrader valve 60MM; Rear 40MM Schrader valve 27.5X1.75-2.4

Spokes: DT Swiss Elemental

Rear Hub: Shimano Freehub, Center Lock Disc

Front Hub: Shimano, center lock disc

Rear Tire: Specialized Infinity Flat Resistant TOURING reflect 27.5X2.3

Front Tire: Specialized Infinity Flat Resistant TOURING reflect 29X2.3

Cockpit

Handlebars: Alloy, Rise 34.4MM,31.8MM, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2MM, 690-730MM

Saddle: Body Geometry, Rivo 2 Gel,168MM

Stem: Stem w/ integrated color display & USB-C phone charger, 31.8MM

Grips: Specialized Body Geometry

SeatPost: Suspension, 40mm travel, 34.9mm

Accessories

Bell: Bell

Fenders: Vado 3 Custom Alloy Profile Fenders

Headlight: Lezyne Stvzo E500+ 500lm, Fork Mounted

Kickstand: Vado 3 Custom Kickstand, With Adjustable Shoe

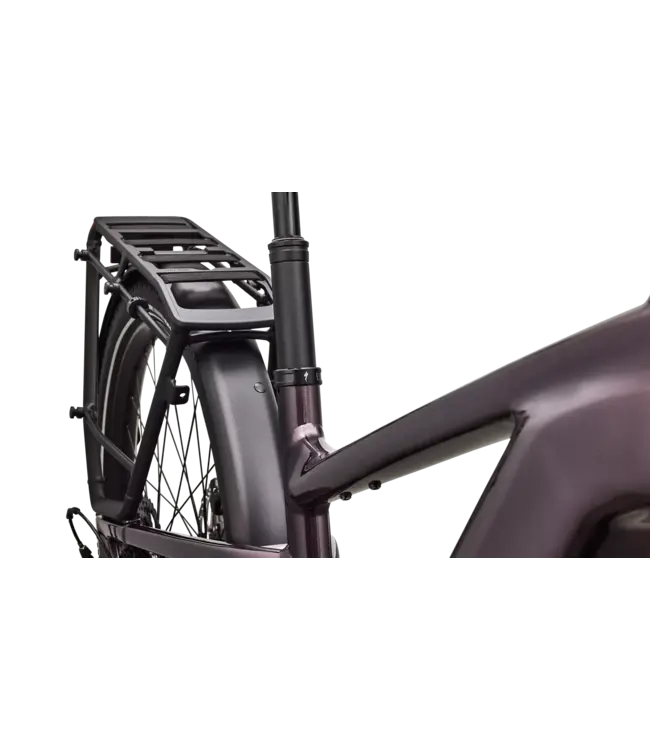

Rack: Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load

Taillight: Spanninga Rack Integrated Rear Light With Brake Light

Bike Lock: Mechanical Battery Lock With Key

SWAT: MIK HD 27.5 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)

Pedals: Turbo Pedals, anti-slip

Product details

Product ID: 222129

Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

Weight: 28.55 kg (62 lb, 15.1 oz)

Weight Size: MD

Geometry

	S	M	L	XL
Crank Length	170	170	170	170
Handlebar Width	730	730	730	730
Stem Length	60	60	60	60
Saddle Width	168	168	168	168
Seatpost Length	300	350	400	400
Stack	636	645	659	682
Reach	430	450	470	485
Head-Tube Length	135	120	135	160
Head-Tube Angle	67	68	68	68
B-B Height	293.5	293.5	293.5	293.5
B-B Drop	66.5	66.5	66.5	66.5
Trail	105	98	98	98
Fork Length (full)	501	521	521	521
Fork Rake/Offset	44	44	44	44
Front-Center	772	734	460	784
Chain-Stay Length	470	470	470	470
Wheelbase	1185	1197	1222	1247
Top-Tube Length (horizontal)	612	635	659	681
Bike Stand-Over Height	768	806	821	854
Seat-Tube Length	385	440	460	500
Seat-Tube Angle	74	74	74	74
