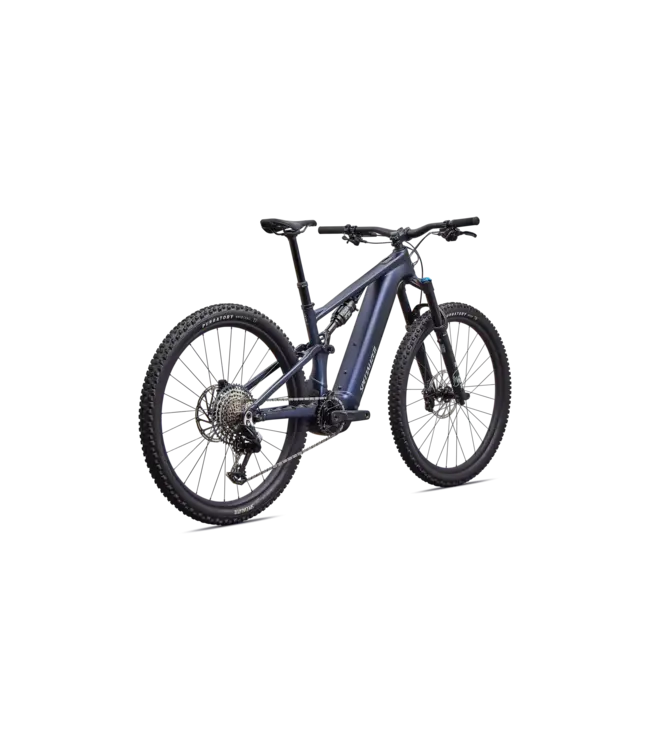

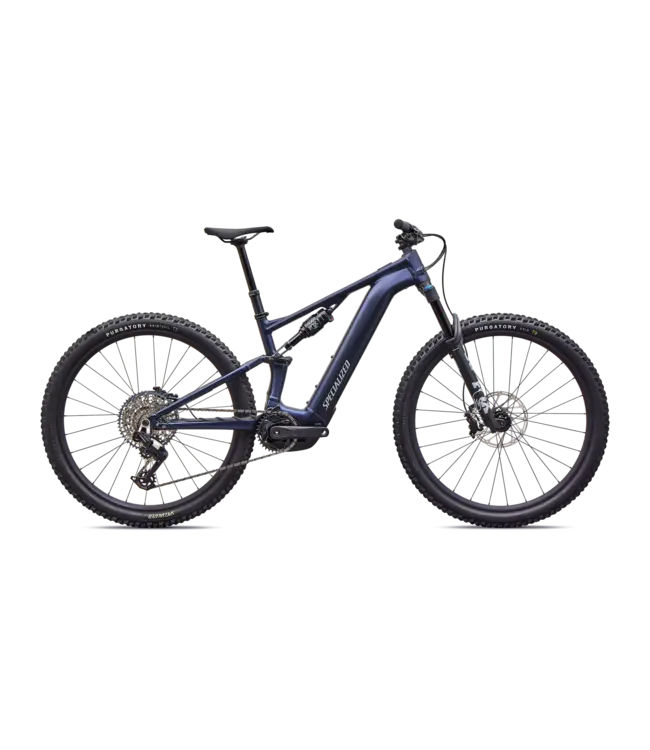

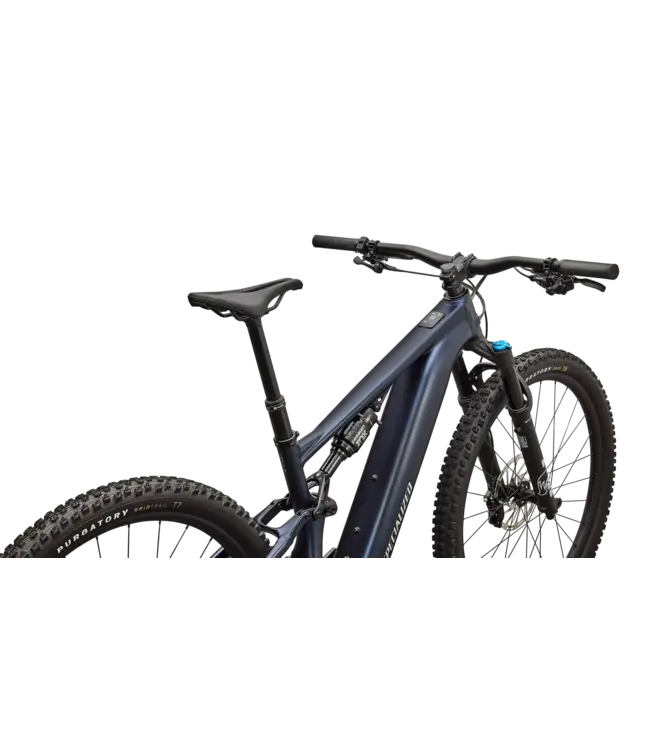

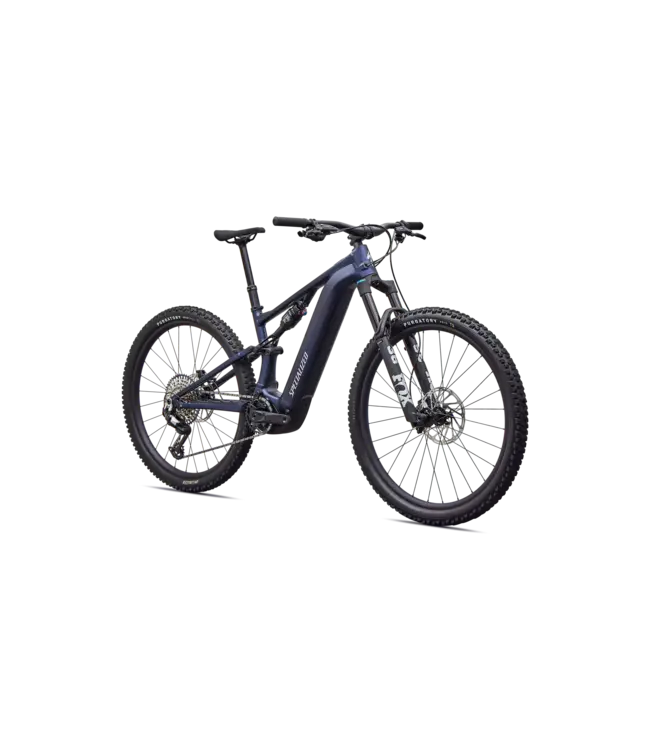

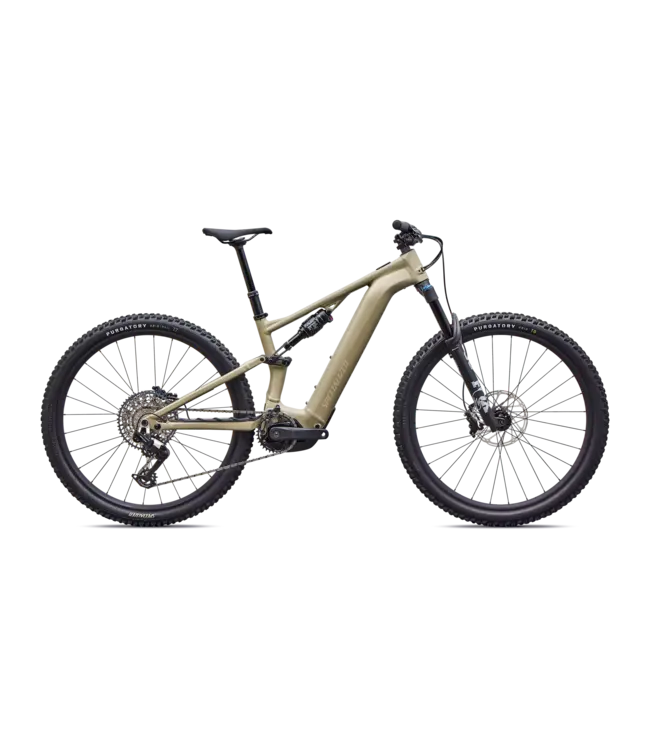

Specialized Turbo Levo R Comp Alloy

SuperNatural Power, Agility, and Range

Levo R

Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4—but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose‑built chassis and Electric‑Rally‑tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.
This is Electric Rally.

At a Glance

Use

Full Power Electric Rally

E-System

Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame

M5 Aluminum, Geo Adj & SWAT Storage

Suspension

Front: 140mm FOX 36 SL Performance GRIP
Rear: 130mm GENIE - FOX FLOAT Performance

Drivetrain

SRAM Eagle 90 Transmission

Wheels

Specialized Alloy Wheels

Technical Specifications

E-bike

Battery: 840Wh battery

UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

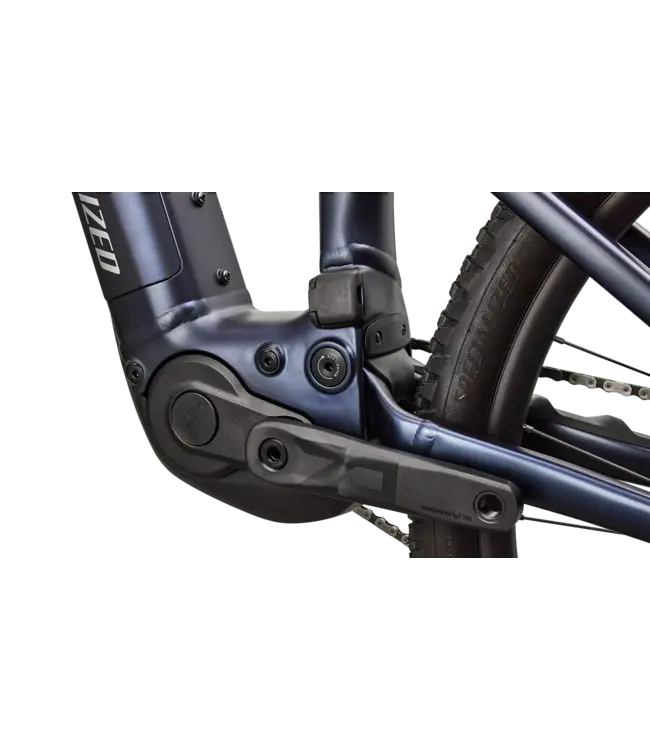

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power

Charger: Specialized 4amp charger

Frameset

Seat Binder: Alloy, 38.6mm

Frame: M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel

Suspension

Fork: FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

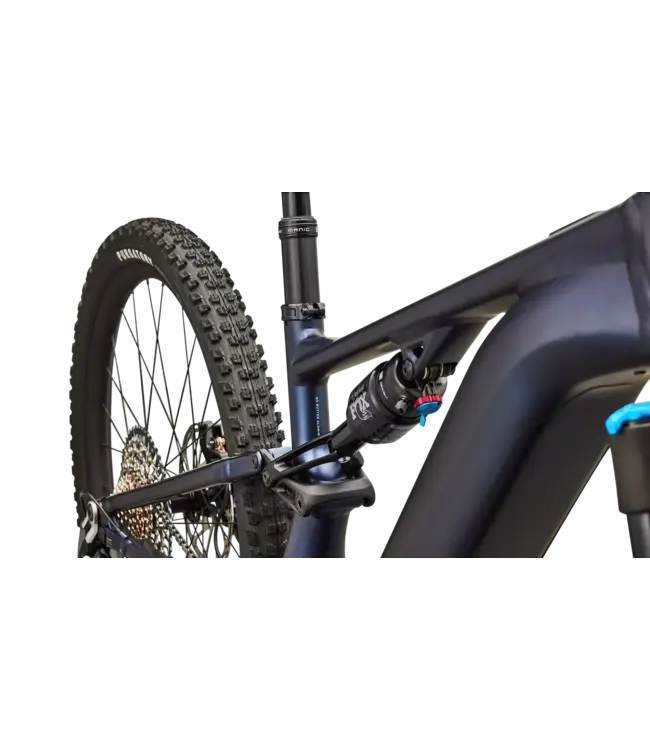

Rear Shock: FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm

Brakes

Front Brake: SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Rear Brake: SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Chain: SRAM 70 Transmission 12-Speed Flattop Chain

Shift Levers: SRAM Eagle 90T, single click, with MMX

Crankset: SRAM Eagle 70, BROSE/ISIS, 160mm, 32T

Rear Derailleur: SRAM Eagle 90 T-Type

Cassette: SRAM GX Transmission, XS 1275, 10-52t

Wheels & tires

Spokes: DT Swiss Elemental

Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Rear Hub: Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb

Front Tire: Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4

Rear Tire: Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)

Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes: Standard, Presta Valve

Cockpit

Stem: Alloy Trail Stem, 35mm bar bore

Saddle: Body Geometry Power Comp, steel rails

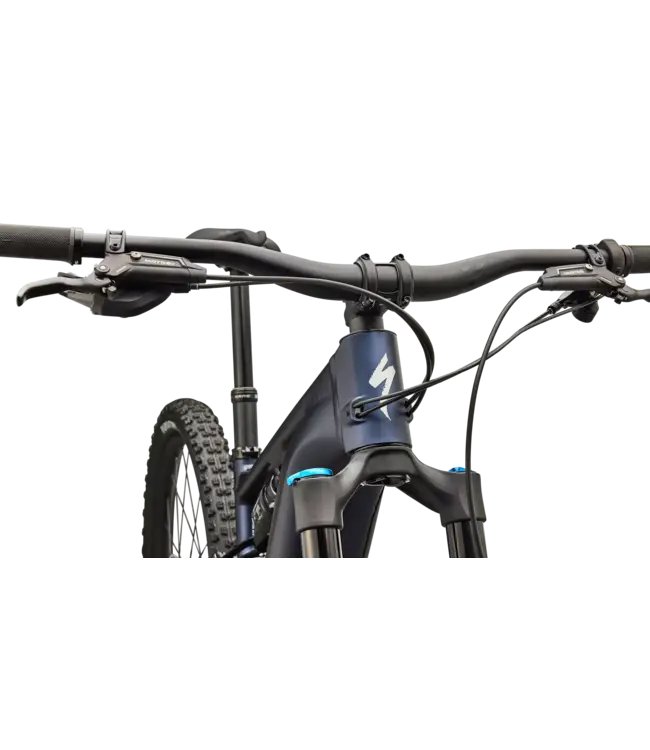

Handlebars: Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide

Grips: Specialized Trail Grips

SeatPost: X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset

Accessories

SWAT: SWAT internal downtube storage

Product details

Product ID: 229898

Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

Weight: 24.24 kg (53 lb, 7.0 oz)

Weight Size: S3

Geometry

	S1 - 27.5	S2 - 29	S3 - 29	S4 - 29	S5 - 29	S6 - 29
Crank Length	160	160	160	160	160	160
Handlebar Width	800	800	800	800	800	800
Stem Length	50	50	50	50	50	50
Saddle Width	155	155	143	143	143	143
Seatpost Length	125	125	150	170	200	200
Stack	602	607	616	630	644	657
Reach	400	420	450	475	500	525
Head-Tube Length	95	100	110	125	140	155
Head-Tube Angle	64.8	65	65	65	65	65
B-B Height (low)	339	339	339	339	339	339
B-B Drop	36	36	36	36	36	36
Trail	128	126	126	126	126	126
Fork Length (full)	550	550	550	550	550	550
Fork Rake/Offset	44	44	44	44	44	44
Front Center	716	736	770	801	833	863
Chain-Stay length	447	447	447	447	447	447
Wheelbase	1160	1181	1215	1246	1277	1309
Top-Tube Length (horizontal)	539	560	592	620	649	677
Bike Stand-Over Height	761	763	773	783	793	803
Seat-Tube Length	375	385	405	425	445	465
Seat-Tube Angle	77	77	77	77	77	77
Seat Post Max Insertion	292	312	210	227	249	271
Seat Post Min Insertion	80	80	80	80	80	80
Saddle Height for Effective ST Angle	645	690	735	780	825	870
