Rims
- Wheel Size / ETRTO
- 622 × 27 (700c)
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)
- Rim Construction
- Carbon Clincher Hooked
- Valve Stem Length
- Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
- Hole Count
- Front: 21H, Rear: 24H
- Rear Rim
- Terra Aero CL Carbon Clincher, 700c (CR2477)
- Rear Rim Dimensions
- Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

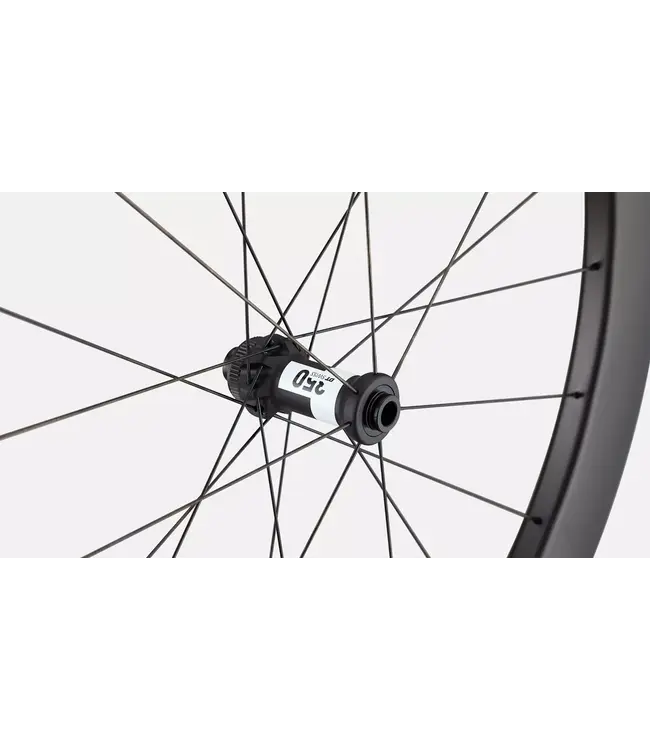

- Front Rim
- Terra Aero CL Carbon Clincher, 700c (CR2478)
- Front Rim Dimensions
- Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
Hubs
- Rear Hub
- DT Swiss 350 Straight Pull, Center Lock, 12x142mm
- Rear Freehub Body
- DT Swiss Ratchet (36T): Sram XD-R
- Rear Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
- Front Hub
- DT Swiss 350 Straight Pull, Center Lock, 12x100mm
- Front Hub Bearing
- DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
Spokes & nipples
- Nipples
- DT Swiss Hex Prolock Al 2.0x14mm
- Rear Spokes
- DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 270mm, NDS: 274mm)
- Rear Lacing Pattern
- One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes
- DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 21qty, (DS: 260mm, NDS: 273mm)
- Front Lacing Pattern
- Two-Cross / Radial (2:1), Not Tucked
Tire info
- Tubeless Tape Width
- 30mm
- Tire Type
- Clincher Tubeless and Clincher Tube Type
- Design Tire
- Tracer TLR 45mm
- Approved Tire Widths
- 35mm-60mm (2.2")
- Max Pressure
- 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
Weight
- Wheelset Weight
- 1608g (with valves and tape)
- Rear Weight
- 838g (with valves and tape)
- Front Weight
- 770g (with valves and tape)
General
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs. / 125 kg.
- Certifications
- ISO 5775-2, UCI Approved
- E-bike Approved
- Yes, SL style systems or max 350W
- Extras
- 4 Extra Spokes and Nipples
