E-bike

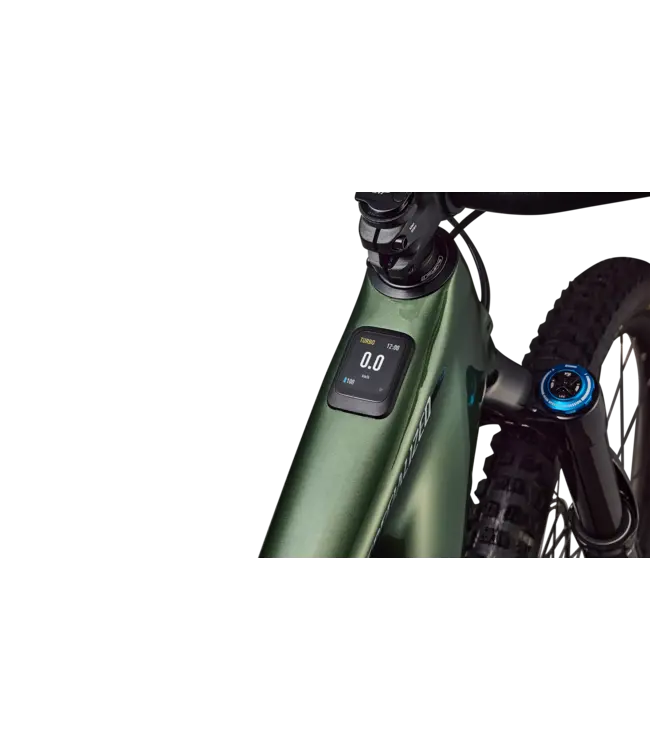

- UI/Remote
- All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

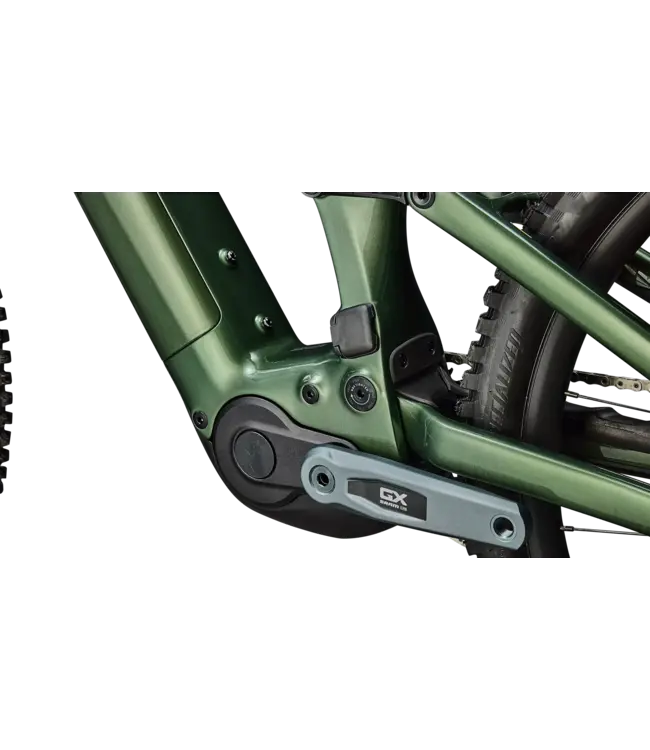

- Motor
- All New Specialized 3.1 Motor, 101Nm torque, 666W power
- Charger
- Specialized 4amp charger
- Battery
- 840wh battery
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
- Fork
- FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel

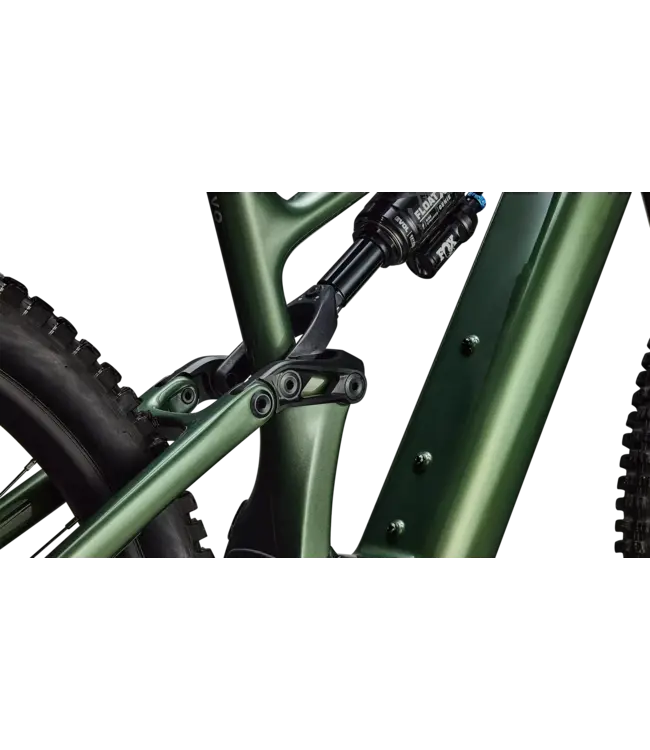

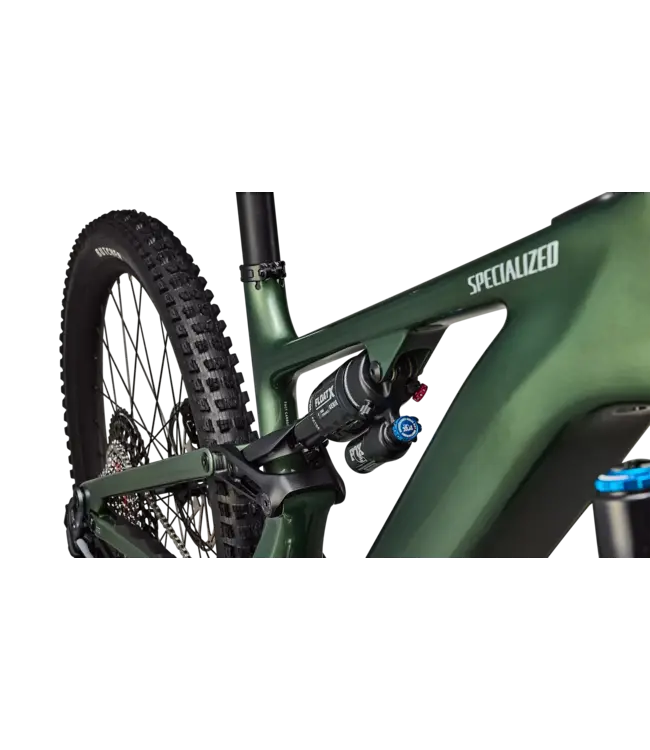

- Rear Shock
- FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment
Brakes
- Front Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
- Rear Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS POD Controller
- Crankset
- SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
- Rear Derailleur
- SRAM GX Eagle Transmission Derailleur
- Chain
- SRAM GX Eagle Transmission Flattop Chain
- Cassette
- SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Wheels & tires
- Rear Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
- Front Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Front Wheel
- Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
- Rear Wheel
- Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
- Inner Tubes
- Standard, Presta valve
Cockpit

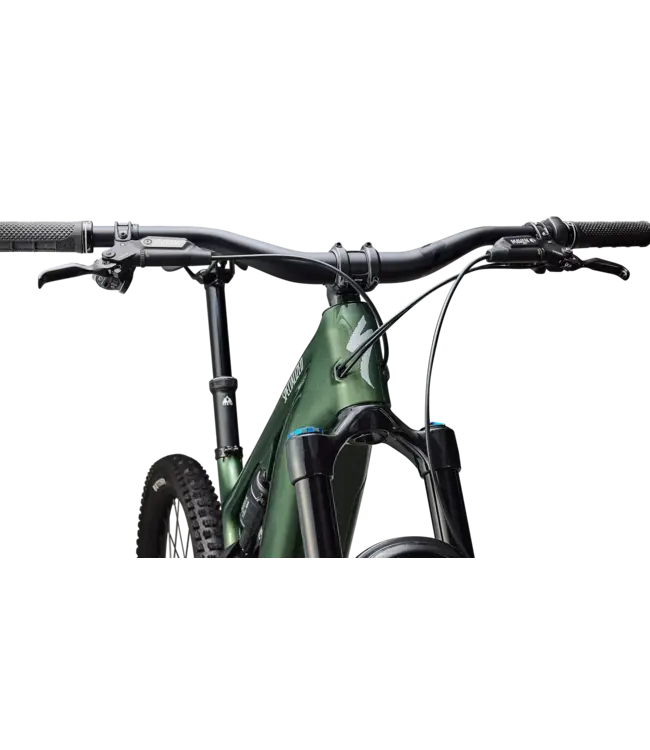

- Stem
- Alloy Trail Stem, 35mm bar bore
- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 780mm, S3-S5: 800mm
- Grips
- Deity Lockjaw grips
- SeatPost
- PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm
- Saddle
- Bridge Comp, Hollow Cr-mo rails
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 218704
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 24.41 kg (53 lb, 13.0 oz)
- Weight Size
- S4
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 170 | 200 | 200 | 200 |
| Stack | 618 | 626 | 638 | 652 | 667 |
| Reach | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
For more information see Specialized detailed rundown on all features and specs. For stock availability and pre orders contact us via email @ [email protected] or 07 3368 2324
