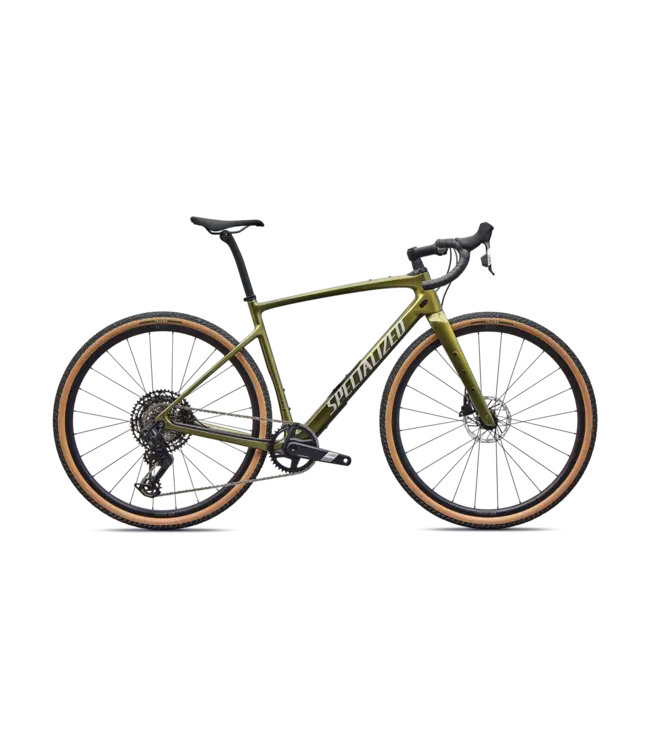

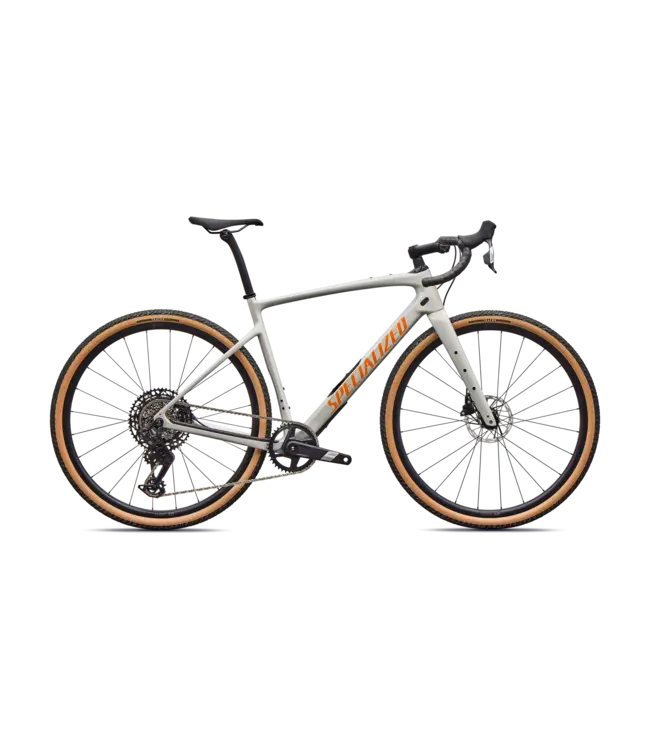

Specialized Diverge 4 Comp Carbon SRAM Apex AXS/S1000

Diverge 4

The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

Use

Gravel Adventure/Race

Frameset

FACT 9r Carbon

Suspension

Future Shock 3.2

Drivetrain/Wheels

SRAM Apex AXS / S1000 Transmission / DT G540

Storage

SWAT 4.0

Weight

Diverge Comp: 9.70kg

Technical Specifications

Frameset

Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc

Brakes

Front Brake: SRAM Apex, hydraulic disc

Rear Brake: SRAM Apex, hydraulic disc

Drivetrain

Cassette: SRAM 1270 Transmission Cassette, 12 Spd,10-52t

Shift Levers: SRAM Apex AXS

Crankset: SRAM Apex DUB Wide, 40t

Chain: SRAM GX T-Type 12 speed

Bottom Bracket: SRAM DUB BSA 68 Wide

Rear Derailleur: SRAM S-1000 Eagle AXS Transmission

Wheels & tires

Front Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Front Tire: Tracer 700x45, Tan Sidewall, Tubeless Ready

Rear Tire: Tracer 700x45, Tan Sidewall, Tubeless Ready

Inner Tubes: Presta, 700x32-50mm

Cockpit

Saddle: Body Geometry Power Sport, steel rails

Stem: Future Stem, Comp

SeatPost: Roval Terra Carbon Seat Post, 20mm Offset

Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Seat Binder: Specialized Alloy, 30.8mm

Tape: Supacaz Super Sticky Kush

Accessories

SWAT: SWAT 4.0 internal downtube storage

Weight

Weight Size: 56

Weight: 9.7 kg (21 lb, 6.2 oz)

Geometry

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	400	420	420	440	440
Stem Length	60	70	80	90	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	380	380	380	380
Stack	563	578	592	610	634	659
Reach	365	374	387	400	412	425
Head Tube Length	90	104	116	135	161	187
Head Tube Angle	70	70.5	71	71	71	71
BB Drop	85	85	85	85	85	85
Trail	72	68	65	65	65	65
Fork Length, Full	391	391	391	391	391	391
Fork Rake/Offset	55	55	55	55	55	55
Front Center	604	613	626	645	665	686
Chainstay Length	430	430	430	430	430	430
Wheelbase	1019	1031	1041	1060	1081	1102
Top Tube Length, Horizontal	521	537	556	575	593	613
Bike Standover Height	700	725	754	779	805	832
Seat Tube Length	400	430	470	500	530	560
Seat Tube Angle	74.5	74	74	74	74	74
