For riders who want a bit more from their commute, the Dew DL is the capable, stylish commuter that takes the beloved Dew platform up a notch. Outfitted with powerful hydraulic disc brakes for confident stopping in any weather and a smooth-shifting 10-speed drivetrain for tackling varied terrain, the Dew DL delivers a perfect blend of comfort, control, and everyday reliability.
SPECS & GEOMETRY
| FRAME | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona 6061 Aluminum |

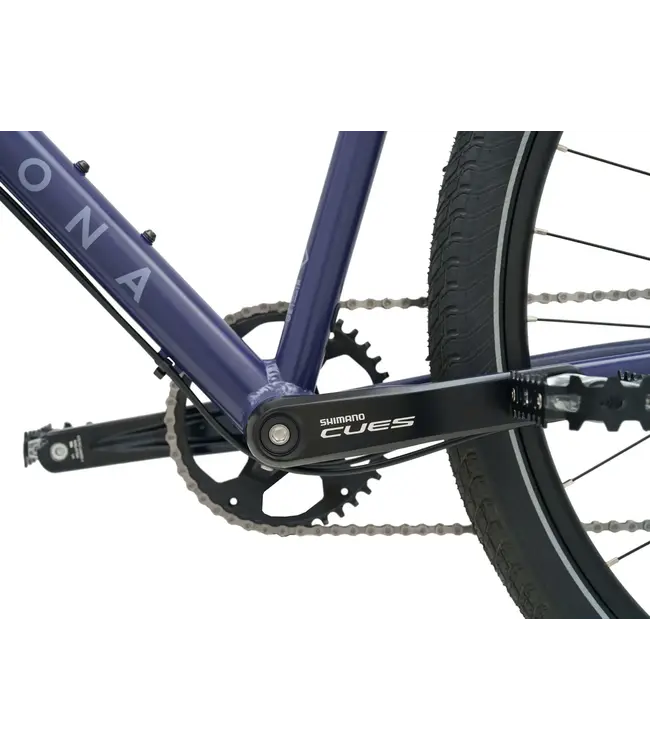

| CRANKSET | Shimano CUES 4000 40t / S-M 170mm / L-XL 175mm |
| BOTTOM BRACKET | Feimin BSA 73 |
| PEDALS | Feimin Platform |
| CHAIN | KMC Xglide 10spd |
| CASSETTE | Shimano CUES LG300 11-48t 10spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano CUES 6000 |
| SHIFTER | Shimano CUES 6000 10spd |
| BRAKE CALIPERS | Shimano ALTUS |
| FRONT BRAKE ROTOR | Shimano 160mm 6B |
| REAR BRAKE ROTOR | Shimano 160mm 6B |
| BRAKE LEVERS | Shimano ALTUS |
| HEADSET | Feimin ZS44/ZS44 |
| HANDLEBAR | Kona Back 10º / Up 6º / Rise 70mm / Width 700mm |
| STEM | Kona 31.8mm / Rise 3º / Length 45mm |
| SEATPOST | Kona w/Offset 27.2mm / 375mm |
| SEAT CLAMP | Kona Clamp 31.8mm |
| GRIPS | Kona Key |
| SADDLE | Kona Commuter |
| FRONT HUB | Joytech 9x100mm |
| REAR HUB | Joytech 10x135mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | Double Wall Aluminum |
| FRONT TIRE | WTB GROOV-E 29x2.0" |
| REAR TIRE | WTB GROOV-E 29x2.0" |
| PAINT COLOR | Satin Future Dusk w/ Mesa Decals |
| EXTRAS | Bell / Kickstand |
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 570 |
| 2 | TT Length | 565 | 606 | 648 | 695 |
| 3 | Reach | 400 | 430 | 460 | 490 |
| 4 | Stack | 539 | 576 | 614 | 651 |
| 5 | Standover | 711 | 733 | 767 | 809 |
| 6 | HT Angle | 69 | 69 | 69 | 69 |
| 7 | HT Length | 90 | 130 | 170 | 210 |
| 8 | ST Angle | 73 | 73 | 73 | 73 |
| 9 | CS Length | 470 | 470 | 470 | 470 |
| 10 | BB Drop | 70 | 70 | 70 | 70 |
| 11 | BB Height | 295 | 295 | 295 | 295 |
| 12 | Wheelbase | 1098 | 1143 | 1187 | 1231 |
| 13 | Front Center | 637 | 682 | 726 | 770 |
| 14 | Fork Length | 430 | 430 | 430 | 430 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
