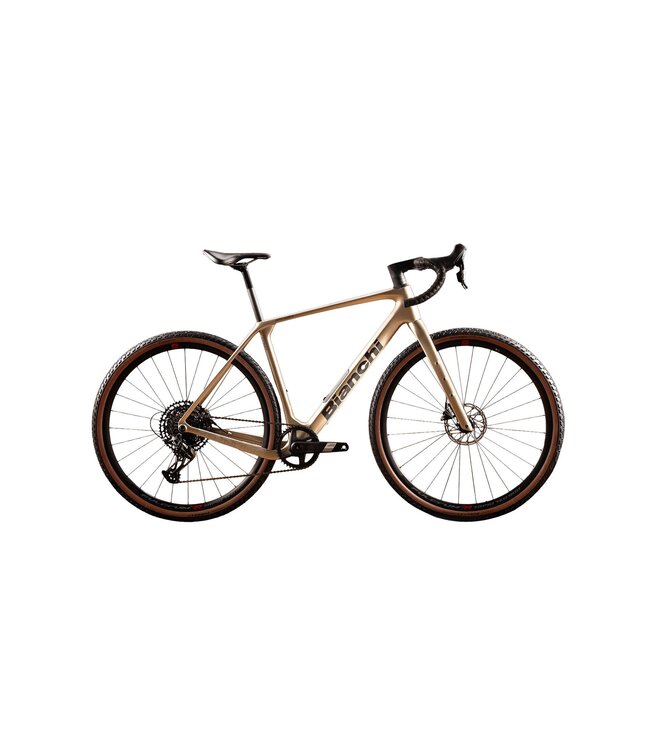

Bianchi Arcadex Comp Apex / SX 12s 40t YTB88

Tech specs

• Frameset

  1. Frame

     Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:

  2. Fork

     Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite

  3. Headset

     Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

• Drivetrain

  1. Shifters

     Sram Apex D1

  2. Rear Derailleur

     Sram Apex Eagle Maximum Cassette Sprocket 52T

  3. Crankset

     Sram Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

  4. Bottom Bracket

     Sram DUB PressFit Road Wide 86.5 X Ø41

  5. Chain

     Sram SX Eagle

  6. Cassette

     Sram SX Eagle, PG-1210 11-50T Driver Body Interface: HG11

• Brakes

  1. Brakes

     Sram APEX Pad Type: Steel-Backed Organic

  2. Rotor

     Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

• Wheels

  1. Wheels

     Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm

  2. Tire

     Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

• Cockpit

  1. Stem

     Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)

  2. Handlebar

     Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)

  3. Grips / Extensions

     Bianchi Hexagon tape 2.5mm thickness, Full black

• Saddle

  1. Seatpost

     Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)

  2. Saddle

     Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
