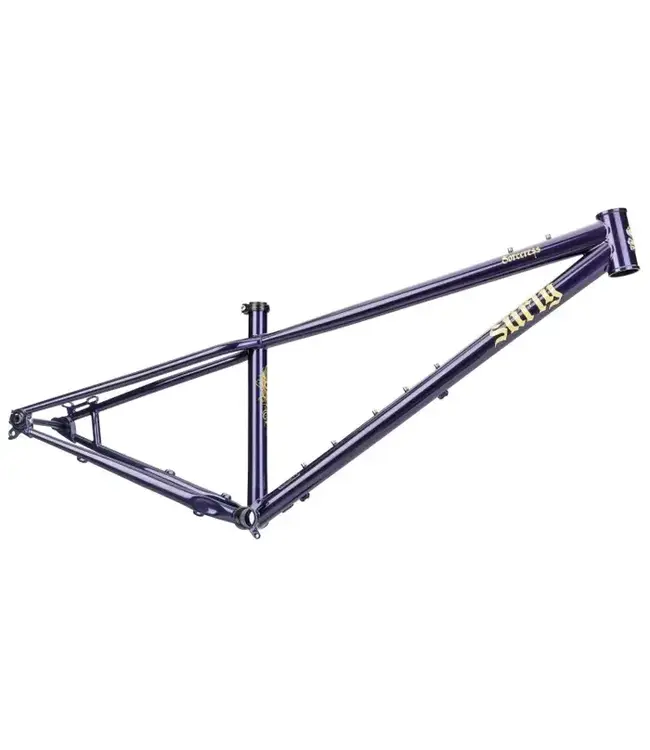

Surly Sorceress Frame Set Elderberry Tonic Medium

It's called the Sorceress, and it's Surly's take on a progressive trail hardtail – made for ever-evolving trails and the humanoids who can't get enough of them. Hard-charging modern trail geometry steel frame designed around 140mm suspension forks.

The Sorceress is long for confident handling, steep for more efficient climbing, and slack to handle gnarly descending. Surly also made sure it's single-speed capable, so throw a leg over it and see what trail antics you can conjure.

Sorceress is size inclusive as possible with low standover height and maximal dropper travel for each size.

Surly's new DUH dropout system lets the rider configure the bike in either a geared mode with a UDH hanger, T-Type transmission, or swap out for a slotted single speed chip.

- UDH/SRAM T-Type compatible
- Single speed via swappable slotted chip
- Integrated single speed tension bolt on drive side
- Patent pending

FRAME SPEC:

Frame: 4131 Chromoly Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
Rear Dropout: Surly DUH Dropout System (UDH, SRAM Full Mount, and single speed)
Suspension Fork Length: 130-150mm travel, 44-47mm offset
Design Wheel/Tyre Size: 29" x 2.6", 27.5" x 2.6" (XS)
Rear Hub Spec: 12 x 148mm (Surly single speed axle included)
Rear Brake: Disc - 51mm I.S. (203mm max rotor)
Head Tube: 44mm
Steerer Tube: 1.125–1.5" tapered
Headsets (S.H.I.S.) ZS44/28.6, EC44/40
Seatpost: 30.9mm
Seat Collar: 33.1mm
Dropper Compatible: Yes, internally routed
Bottom Bracket: 73mm threaded (1.37" x 24 TPI)
Crankset (Max Ring): 1x (55CL): 32T
