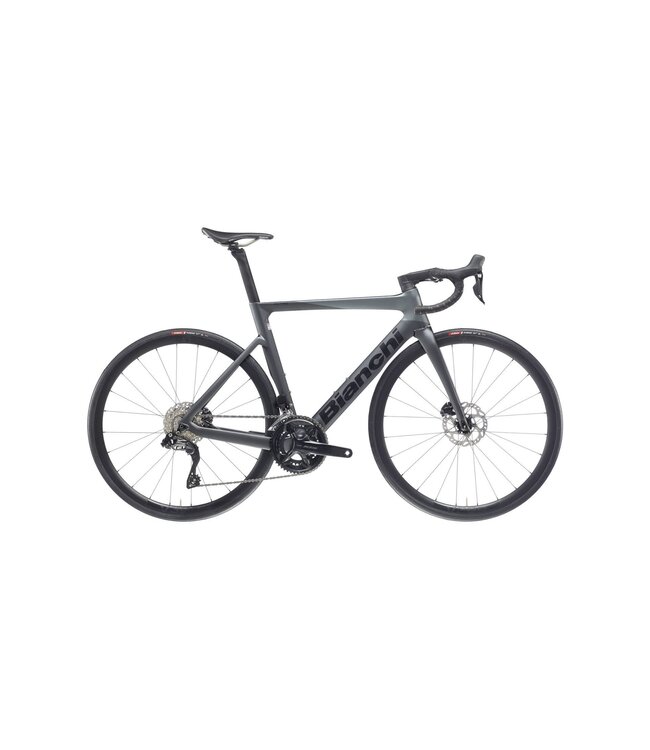

Bianchi Oltra Race 105 Di2 50-34 R818 YTB37

Tech specs

• Frameset

  1. Frame

     Oltre Race aero carbon, compatible with mechanical/electronic transmissions, compatible with internal cable routing, BB-PressFit 86,5x41, integrated seat clamp, disc brake flat mount, thru-axle 12x142, sizes 44-47-50-53-55-57-59-61cm

  2. Fork

     Full Carbon Aero, integrated head , disc brake flat mount, thru axle 12x100

  3. Headset

     ACROS & FSA, for internal cable routing

• Drivetrain

  1. Shifters

     Shimano 105 Di2 hydraulic disc brake for road, ST-R7170, BR-R7170, for 160mm rotor

  2. Rear Derailleur

     Shimano 105 Di2 12sp, RD-R7150

  3. Front Derailleur

     Shimano 105 Di2 12sp, FD-R7150

  4. Crankset

     Shimano, 105 12sp, FC-R7100, for rear 12- speed, 50x34T, Crank Length: 165mm-44cm, 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm

  5. Bottom Bracket

     Token Ninja Lite BB4124PS, for 24mm spindle, threaded design

  6. Chain

     Shimano, 105 12sp, CN-M7100

  7. Cassette

     Shimano, 105 12sp, CS-R7100, 11-12-13-14-15-17-19-21-24-27-30-34T

• Brakes

  1. Brakes

     Shimano BR-R7170 Hydraulic disc brake, included in the shifter

  2. Rotor

     Shimano RT70 rotor for disc brake center lock, 160mm front and rear

• Wheels

  1. Wheels

     Velomann V30R, alloy, 23mm channel, 30mm, profile. 2 to 1 spoke pattern, j-bend spokes, black, HG11 boby, weight : 1790g

  2. Tire

     Vittoria Rubino 28-622 full black G2.0, graphene + silica, 100TPI

• Cockpit

  1. Stem

     Velomann, Alloy 6061, rise - 7°, Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm

  2. Handlebar

     Velomann Aero Compact, alloy 6061 diam. 31.8mm, reach 74mm, drop 116mm, Size: 400mm-47/53cm, 420mm-55/59cm, 440m-61cm

  3. Grips / Extensions

     Bianchi Hexagon tape, 2.5mm thickness, black

• Saddle

  1. Seatpost

     Velomann Full Carbon Aeroshape, special Clamp type with alloy head adjustable and reversible +/- 35mm; Lenght: 250mm-44, 300mm-47/50cm, 350mm53/61cm

  2. Saddle

     Velomann Mitora139.1, open flow, steels rails 7x7mm, carbon-reinforced nylon, Wide: 139mm, Lenght: 250mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
